CM100TU-12H Mitsubishi - IGBT Power Transistor Module

CM100TU-12H Description

Mitsubishi Electric makes the CM100TU-12H, a 600 V, 100 A IGBT module. Inside, it has six switches arranged as a three-phase bridge (6-in-1). It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.

Looking for a replacement CM100TU-12H? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

Target Applications

Mitsubishi CM100TU-12H is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

CM100TU-12H is a 600 V, 100 A IGBT module, six-pack (6-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Six-pack (6-in-1)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	100 A
Isolation voltage	2,500 V

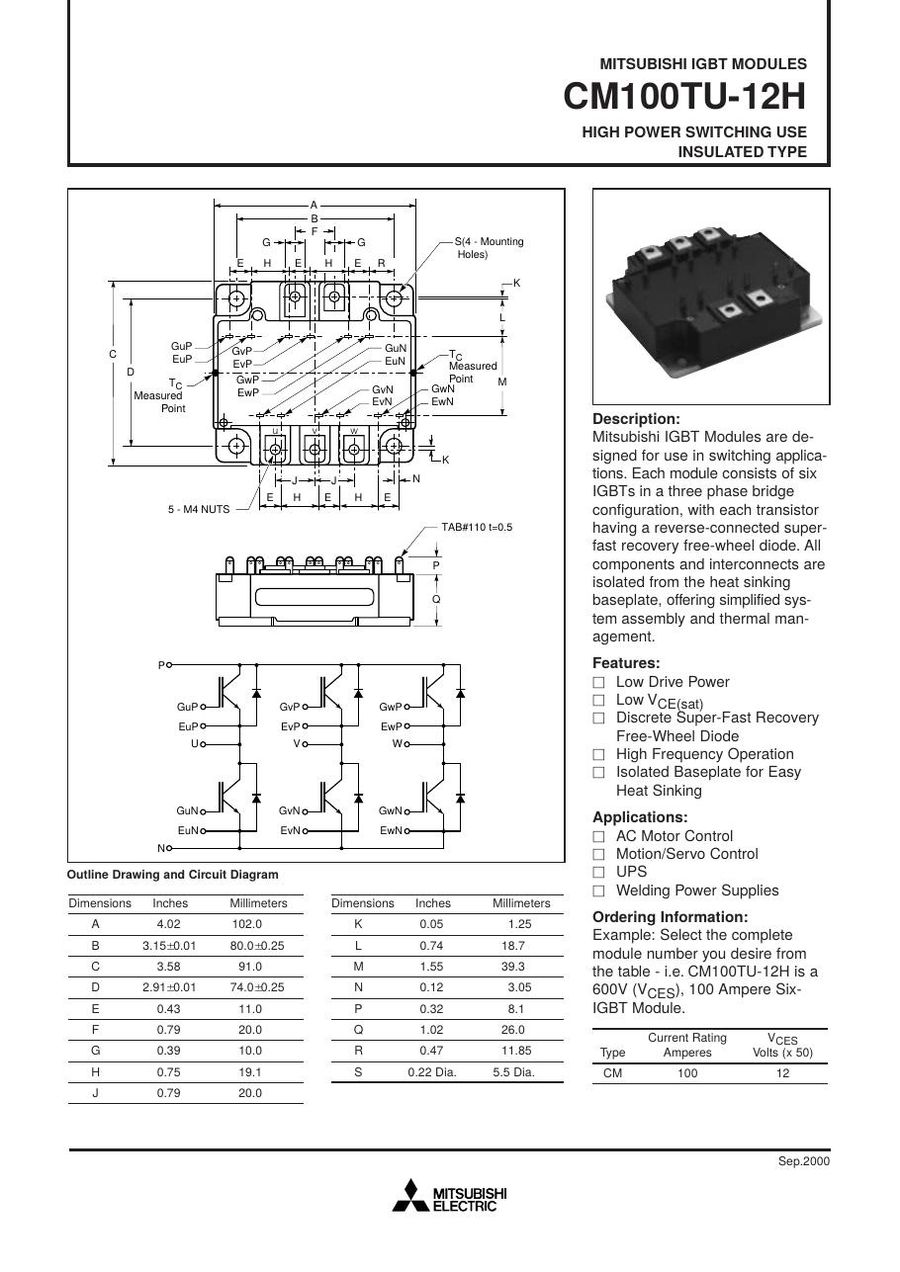

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for CM100TU-12H (reply within 24 hours)
