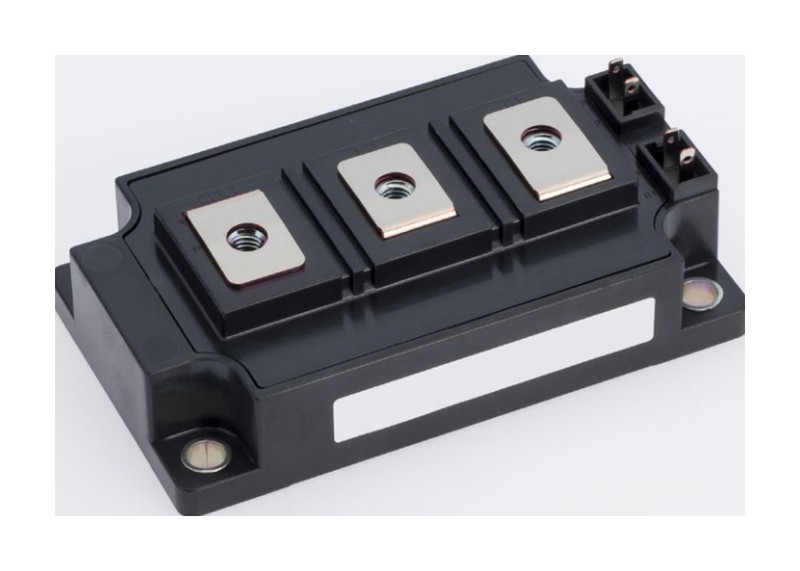

CM200DY-40TA Mitsubishi - IGBT Module

CM200DY-40TA Description

CM200DY-40TA is a 2,000 V / 200 A dual (half-bridge) IGBT module from Mitsubishi Electric, T series (7th generation IGBT). Datasheet ratings: 200 A DC at TC = 140 °C, VCE(sat) 1.80 V typ. at 200 A, 4,000 V RMS isolation. Typical applications: Medium voltage drive.

USComponent supplies CM200DY-40TA and other Mitsubishi power modules, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi CM200DY-40TA is used for Medium voltage drive.

Key Specifications

CM200DY-40TA is a 2,000 V / 200 A dual (half-bridge) IGBT module from Mitsubishi Electric, T series (7th generation IGBT). Source: Mitsubishi Electric datasheet (Mar 2024).

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	IGBT module
Series	T series (7th generation IGBT)
Configuration	Dual switch (half-bridge)
Collector-emitter voltage (VCES)	2,000 V
Collector current (IC, DC, TC = 140 °C)	200 A
Repetitive peak collector current (ICRM, pulse)	400 A
Total power dissipation (Ptot, TC = 25 °C)	2,170 W
VCE(sat) (terminal), IC = 200 A, VGE = 15 V, Tj = 25 °C	1.80 V typ. / 2.10 V max.
Gate-emitter threshold voltage VGE(th)	5.5 / 6.0 / 6.6 V (min. / typ. / max.)
Isolation voltage (Visol, AC 1 min)	4,000 V RMS
Maximum junction temperature (Tjmax)	175 °C
Operating junction temperature	-40 to +150 °C
Mounting torque (to heat sink)	M6 screw: 3.5 - 4.5 N·m (typ. 4.0)
Mounting torque (main terminals)	M6 screw: 3.5 - 4.5 N·m (typ. 4.0)
Mass (typ.)	260 g
Supply status (Mitsubishi)	In production
Applications (datasheet)	Medium voltage drive, etc.
Datasheet	Available on this page (PDF)
