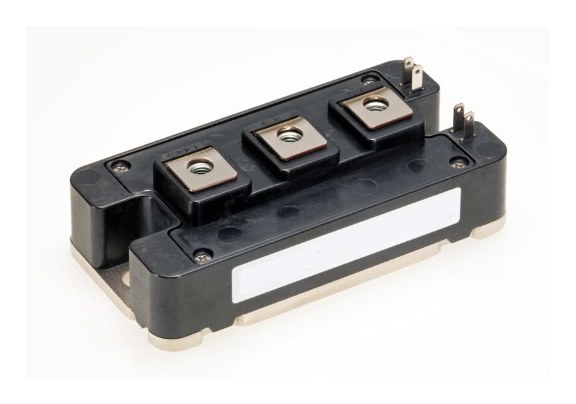

CM200DY-24TH Mitsubishi - IGBT Module
CM200DY-24TH Description
CM200DY-24TH is a 1200 V / 200 A dual (half-bridge) IGBT module from Mitsubishi Electric (Standard Type package). Typical applications: medical equipment, Welder, Power supply.
USComponent supplies CM200DY-24TH and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- dual switch (half-bridge)
- Copper base plate (Nickel-plating)
- Tin-plating tab terminals
- RoHS Directive compliant
- UL Recognized under UL1557, File No. E323585
Target Applications
Mitsubishi CM200DY-24TH is used for Medical equipment, Welder, Power supply.
Key Specifications
CM200DY-24TH is a 1200 V / 200 A dual (half-bridge) IGBT module from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.
| Parameter | Value |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Product type | IGBT module |
| Series | TH series |
| Configuration | Dual (half-bridge) |
| Collector-emitter voltage (VCES) | 1200 V |
| Collector current (IC) | 200 A |
| Isolation voltage (Viso) | 4,000 V RMS |
| Package | Standard Type |
| Package size | 48 x 94 mm |
| Supply status (Mitsubishi) | Active |
| Datasheet | Available on this page (PDF) |
Technical document (PDF) | Request a quote for CM200DY-24TH (reply within 24 hours)
