CM200E3U-12HMitsubishi - IGBT Module

CM200E3U-12H Description

The Mitsubishi Electric CM200E3U-12H is an IGBT module rated at 600 V and 200 A, available from USComponent. High Power Switching Use Insulated Type IGBT Module. Typical applications for this type of device include variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the CM200E3U-12H.

Summary of Features

Target Applications

Mitsubishi CM200E3U-12H is used for Brake.

Key Specifications

CM200E3U-12H is a 600 V, 200 A IGBT module. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	200 A
Isolation voltage	2,500 V
Datasheet	Available on this page (PDF)

Download CM200E3U-12H Datasheet

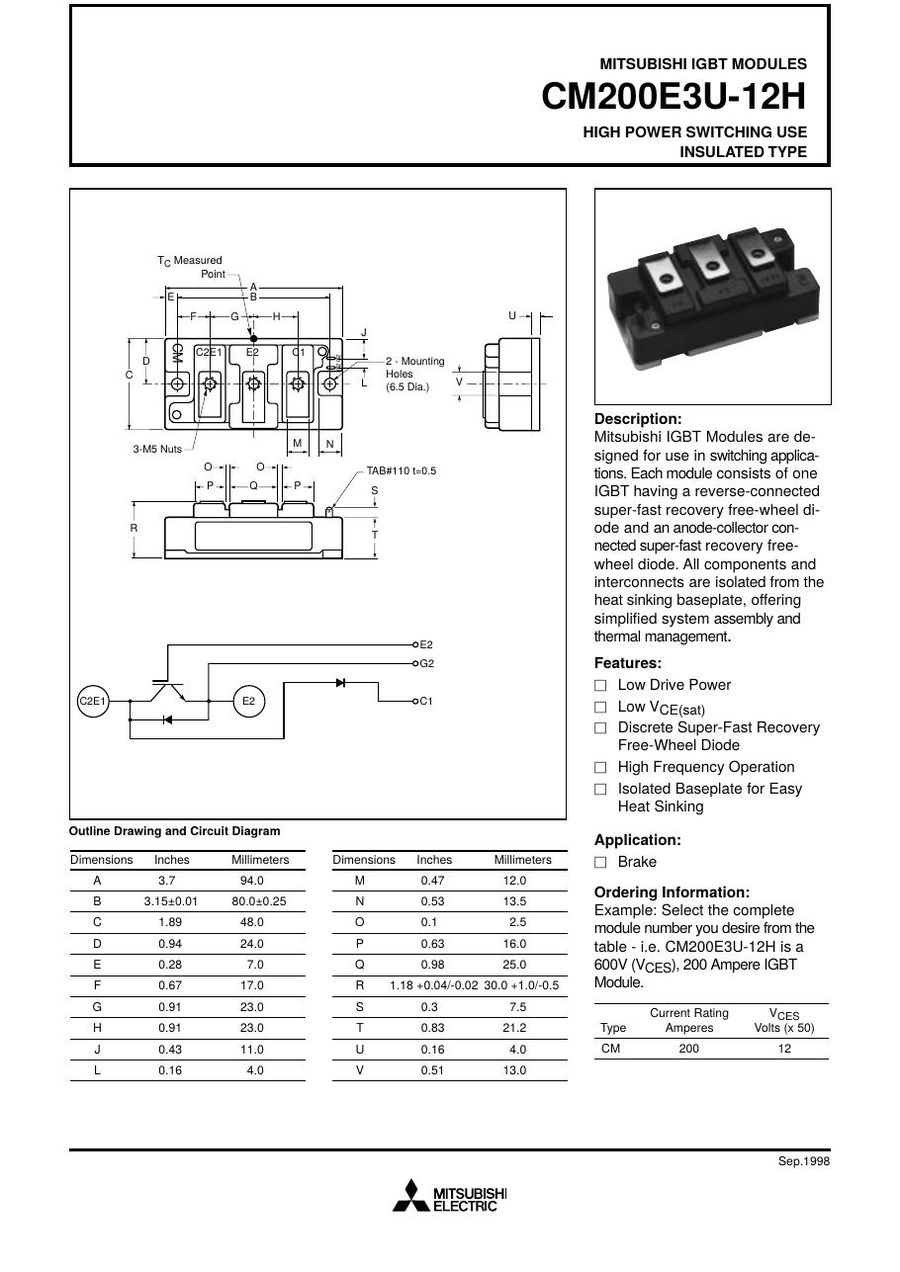

CM200E3U-12H PDF Datasheet
