CM200DY-34A Mitsubishi - IGBT Module

CM200DY-34A Description

Mitsubishi Electric CM200DY-34A is an IGBT module. It is built with two switches in a half-bridge (2-in-1) arrangement. Typical uses include motor drives, servo amplifiers, induction heating, welding power sources and grid-tie inverters.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the CM200DY-34A, and please confirm ratings against the datasheet before ordering.

Summary of Features

Target Applications

Mitsubishi CM200DY-34A is used for general purpose inverters and servo controls.

Key Specifications

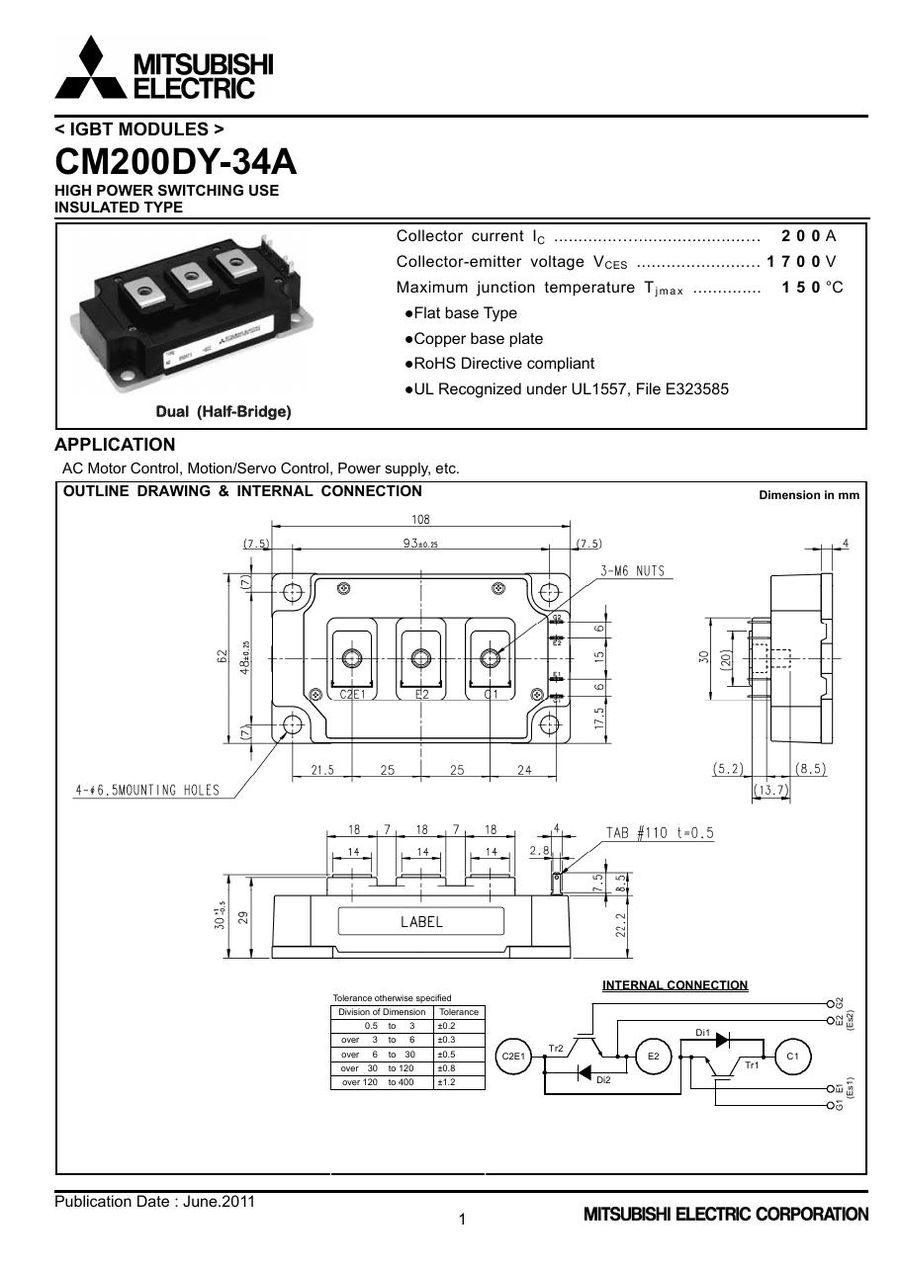

Mitsubishi CM200DY-34A is a 1,700 V, 200 A IGBT module, dual (2-in-1) configuration. Source: Mitsubishi CM200DY-34A datasheet.

Parameter	Value
Product type	IGBT module, insulated type
Configuration	Dual (2 elements in a pack)
Collector-emitter voltage (VCES)	1,700 V
Collector current (IC, TC = 109 °C)	200 A
Pulse collector current (ICM)	400 A
Max collector dissipation (PC, TC = 25 °C)	1,980 W
VCE(sat) typ (IC = 200 A, Tj = 25 °C)	2.2 V
Junction temperature	-40 to +150 °C
Isolation voltage	3,500 Vrms, 1 min
Terminals	M6
Weight (typ)	400 g
Datasheet	Available on this page (PDF)
