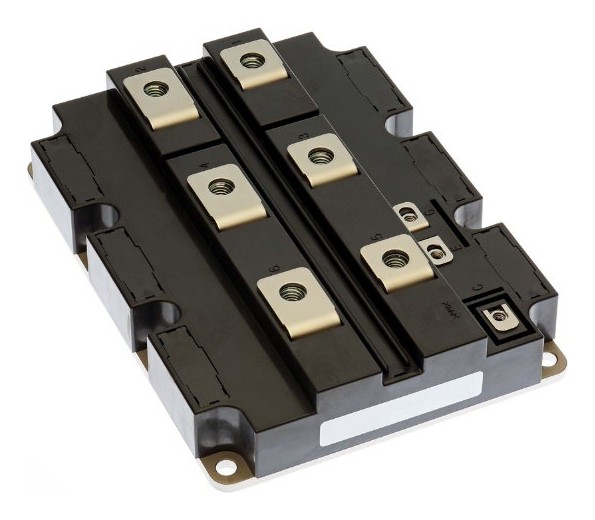

CM1500HC-66XB Mitsubishi - IGBT Module
CM1500HC-66XB Description
CM1500HC-66XB is a 3300 V, 1500 A Mitsubishi Electric single switch HVIGBT module (XB-Series (CSTBT III / RFC diode)), used for traction drives, high-reliability converters and DC choppers.
USComponent supplies CM1500HC-66XB and other Mitsubishi Electric power modules. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- 3,300 V / 1,500 A single-switch HVIGBT module
- CSTBT (III) chip with RFC diode
- Insulated type, 6,000 Vrms isolation, flat base plate
- For traction and medium-voltage converters
Target Applications
Mitsubishi CM1500HC-66XB is used for Traction drives, high-reliability converters and DC choppers.
Key Specifications
CM1500HC-66XB is a 3,300 V, 1,500 A Mitsubishi Electric HVIGBT module. Source: manufacturer datasheet.
| Parameter | Value |
|---|---|
| Product type | HVIGBT module |
| Configuration | Single switch (1 element) |
| Collector-emitter voltage (VCES) | 3,300 V |
| Collector current (IC nom) | 1,500 A |
| Technology | XB-Series (CSTBT III / RFC diode) |
| Package | HV single package, flat base plate |
Technical document (PDF) | Request a quote for CM1500HC-66XB (reply within 24 hours)
