CM1200HC-66H Mitsubishi - IGBT Module

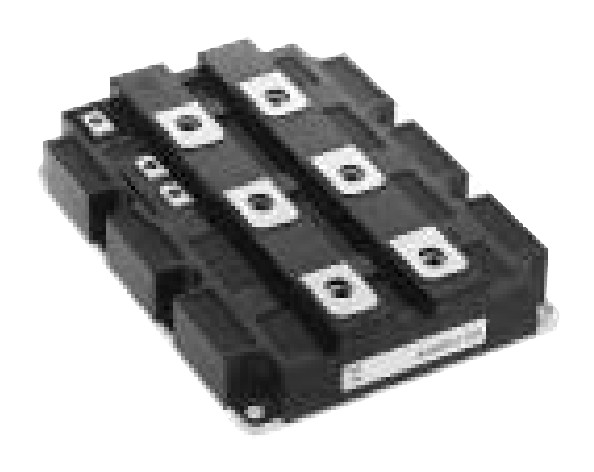

CM1200HC-66H Description

CM1200HC-66H is a 3300 V, 1200 A IGBT module made by Mitsubishi Electric. Inside, it has a single switch with its freewheeling diode (1-in-1). Engineers use it mainly in the inverter section of motor drives, as well as in UPS, welding and power-conversion equipment. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the CM1200HC-66H and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Mitsubishi CM1200HC-66H is used for Traction drives, High Reliability Converters / Inverters and DC choppers.

Key Specifications

CM1200HC-66H is a 3300 V / 1200 A HVIGBT module from Mitsubishi Electric. Source: manufacturer datasheet (detailed).

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	HVIGBT module (high voltage IGBT)
Configuration	Single (1-element in a pack)
Collector-emitter voltage (VCES)	3300 V
Collector current (IC)	1200 A (Tc = 100 °C)
Peak collector current (ICM)	2400 A (pulse)
Collector-emitter saturation voltage (VCE(sat))	3.30 V typ / 4.20 V max (IC = 1200 A, VGE = 15 V, Tj = 25 °C)
Max power dissipation (PC)	14700 W (Tc = 25 °C, IGBT part)
Isolation voltage (Viso)	6000 V (RMS, 60 Hz, 1 min)
Short-circuit pulse width (tpsc)	10 µs (VCC = 2200 V, VGE = 15 V, Tj = 125 °C)
Junction temperature (Tj)	-40 to +150 °C (operating -40 to +125 °C)
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for CM1200HC-66H (reply within 24 hours)
