CM1200DW-40T Mitsubishi - IGBT Module

Category: IGBT Modules

Specifications: 2000V, 1200A

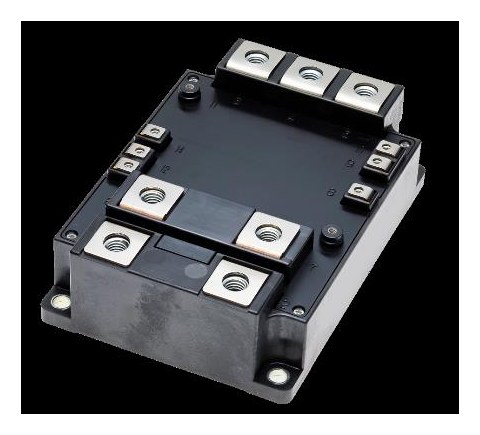

CM1200DW-40T Mitsubishi IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

CM1200DW-40T Description

CM1200DW-40T is a 2000 V / 1200 A dual (half-bridge) IGBT module from Mitsubishi Electric (LV100 Industrial package). Typical applications: photovoltaic power converter, Energy storage system, Wind power converter.

USComponent supplies CM1200DW-40T and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.

Target Applications

Mitsubishi CM1200DW-40T is used for Photovoltaic power converter, Energy storage system, Wind power converter.

Key Specifications

CM1200DW-40T is a 2000 V / 1200 A dual (half-bridge) IGBT module from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.

ParameterValue
ManufacturerMitsubishi Electric
Product typeIGBT module
SeriesT series
ConfigurationDual (half-bridge)
Collector-emitter voltage (VCES)2000 V
Collector current (IC)1200 A
Isolation voltage (Viso)4,000 V RMS
PackageLV100 Industrial
Package size100 x 140 mm
Supply status (Mitsubishi)Active
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for CM1200DW-40T (reply within 24 hours)

Related Part Numbers

CM1200DW-34T
1700V, 1200A		CM1200DW-24T
1200V, 1200A		CM800DW-24T
1200V, 800A		CM800DW-34T
1700V, 800A
CM1800DW-24ME
1200V, 1800A		CM800DW-34TA
1700V, 800A		CM1200DY12ECM1200E4C-34N
1700V, 1200A
CM1200HA-24J
1200V, 1200A		CM1200DC-34S
1700V, 1200A		CM1200HA-34H
1700V 1200A		CM1200DC-34N
1700V, 1200A
CM1200HA-50H
1200A/2500V		CM1200DB-34N
1700V, 1200A		CM1200HA-66H
3300V, 1200A		CM1200DA-34X
1700V, 1200A
