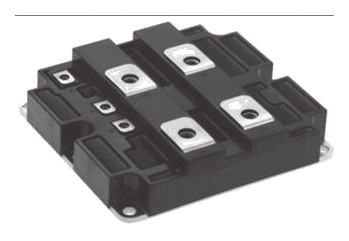

CM1200E4C-34N Powerex - IGBT Module

CM1200E4C-34N Description

Powerex makes the CM1200E4C-34N, a 1700 V, 1200 A IGBT module. Typical uses include motor drives, servo amplifiers, induction heating, welding power sources and grid-tie inverters.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the CM1200E4C-34N; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Summary of Features

Target Applications

Powerex CM1200E4C-34N is used for Traction, Medium Voltage Drives and High Voltage Power Supplies.

Key Specifications

CM1200E4C-34N is a 1,700 V, 1200 A IGBT module. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Collector-emitter voltage (VCES)	1,700 V
Collector current (IC)	1200 A
Isolation voltage	4,000 V
Datasheet	Available on this page (PDF)
