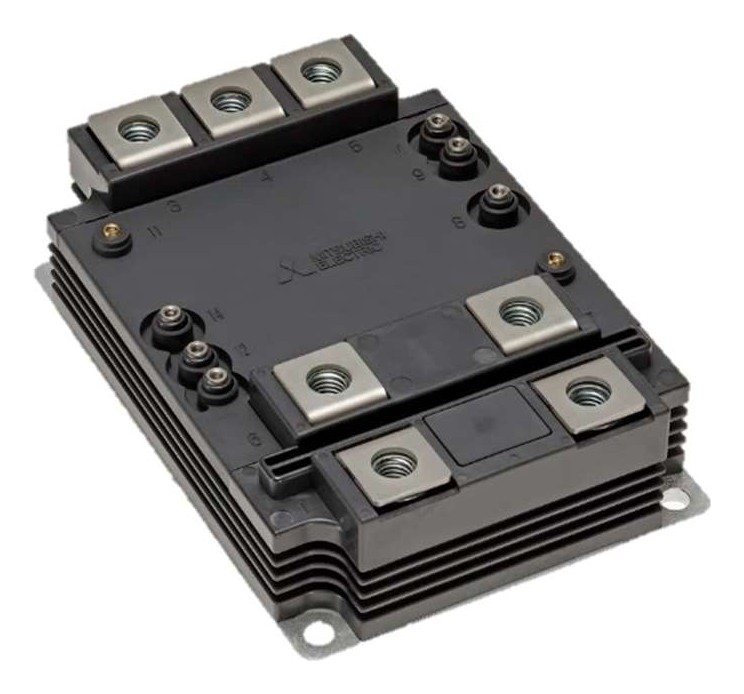

CM1200DA-34X Mitsubishi - IGBT Module

CM1200DA-34X Description

CM1200DA-34X is a 1700 V, 1200 A Mitsubishi Electric dual HVIGBT module (X-Series (6th version HVIGBT, CSTBT III / RFC diode)), used for traction drives, high-reliability converters and DC choppers.

USComponent supplies CM1200DA-34X and other Mitsubishi Electric power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi CM1200DA-34X is used for Traction drives, high-reliability converters and DC choppers.

Key Specifications

CM1200DA-34X is a 1,700 V, 1,200 A Mitsubishi Electric HVIGBT module. Source: manufacturer datasheet.

Parameter	Value
Product type	HVIGBT module
Configuration	Dual (2 elements)
Collector-emitter voltage (VCES)	1,700 V
Collector current (IC nom)	1,200 A
Technology	X-Series (6th version HVIGBT, CSTBT III / RFC diode)
Package	HV dual package, aluminium base plate

Technical document (PDF)  |  Request a quote for CM1200DA-34X (reply within 24 hours)
