CM1800DW-24ME Mitsubishi - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 1800A

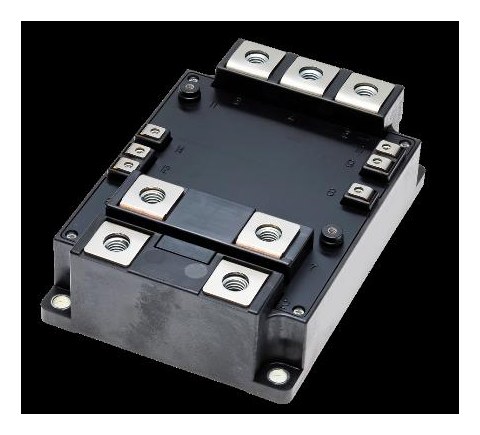

CM1800DW-24ME Mitsubishi IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

CM1800DW-24ME Description

CM1800DW-24ME is a 1200 V / 1800 A dual (half-bridge) IGBT module from Mitsubishi Electric (LV100 Industrial package). Typical applications: photovoltaic power converter, Energy storage system, Motion control.

USComponent supplies CM1800DW-24ME and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.

Target Applications

Mitsubishi CM1800DW-24ME is used for Photovoltaic power converter, Energy storage system, Motion control.

Key Specifications

CM1800DW-24ME is a 1200 V / 1800 A dual (half-bridge) IGBT module from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.

ParameterValue
ManufacturerMitsubishi Electric
Product typeIGBT module
SeriesM series
ConfigurationDual (half-bridge)
Collector-emitter voltage (VCES)1200 V
Collector current (IC)1800 A
Isolation voltage (Viso)4,000 V RMS
PackageLV100 Industrial
Package size100 x 140 mm
Supply status (Mitsubishi)Active
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for CM1800DW-24ME (reply within 24 hours)
