CM1200HA-50HMitsubishi - IGBT Power Transistor Module

CM1200HA-50H Description

The Mitsubishi Electric CM1200HA-50H is an IGBT module rated at 2500 V and 1200 A. Typical applications for this type of device include variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the CM1200HA-50H.

Summary of Features

Target Applications

Mitsubishi CM1200HA-50H is used for Inverters, Converters, DC Choppers, Induction heating, DC to DC Converters.

Key Specifications

CM1200HA-50H is a 2,500 V, 1200 A IGBT module, single (1-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Single (1-in-1)
Collector-emitter voltage (VCES)	2,500 V
Collector current (IC)	1200 A
Datasheet	Available on this page (PDF)

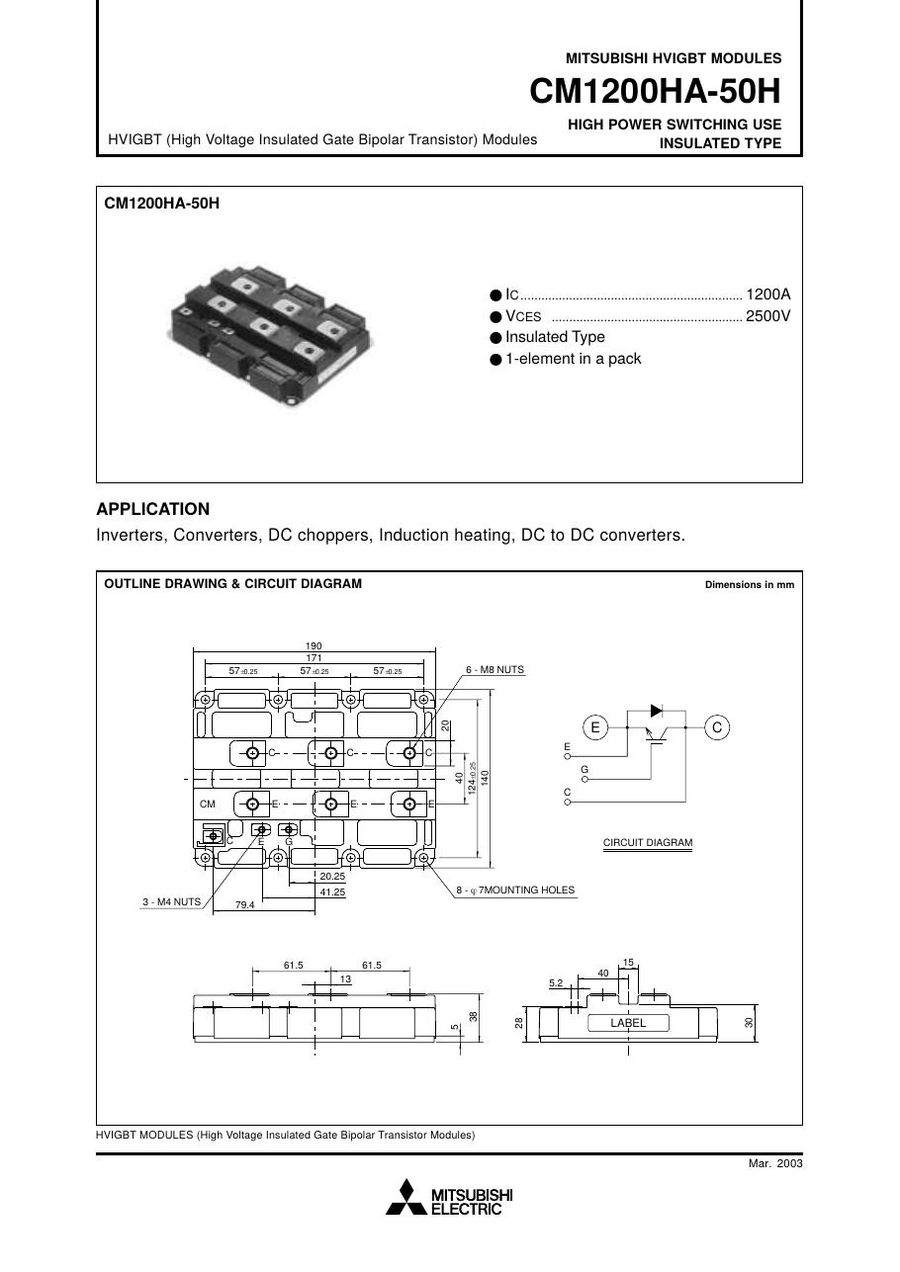

Download CM1200HA-50H Datasheet

CM1200HA-50H PDF Datasheet
