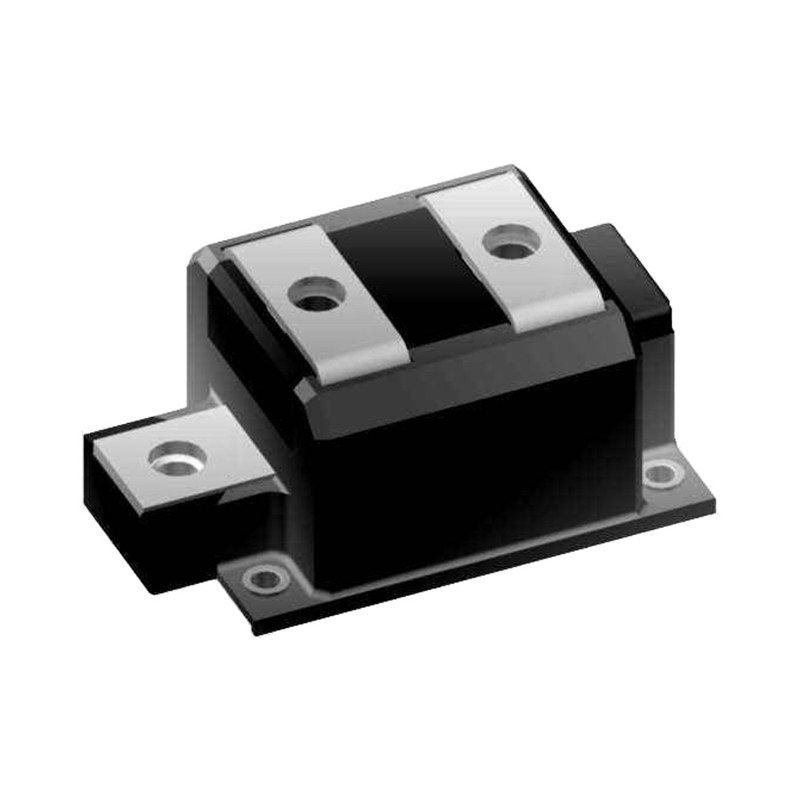

MDNA700P2200CC IXYS - Diode Module

MDNA700P2200CC Description

MDNA700P2200CC is a 2200 V / 700 A rectifier diode module from IXYS (ComPack package). Typical applications: diode for main rectification, For single and three phase bridge configurations, Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.

USComponent supplies MDNA700P2200CC and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

IXYS MDNA700P2200CC is used for Diode for main rectification, For single and three phase bridge configurations, Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.

Key Specifications

MDNA700P2200CC is a 2200 V / 700 A rectifier diode module from IXYS (now part of Littelfuse) in a ComPack package. Source: IXYS (Littelfuse) datasheet and product data.

Parameter	Value
Manufacturer	IXYS (Littelfuse)
Product type	Rectifier diode module
Configuration	Phase leg
Repetitive peak reverse voltage (VRRM)	2 x 2200 V
Average forward current (IFAV)	700 A
Package	ComPack
Isolation voltage	4800 V~
Weight	500 g
Supply status	Active
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for MDNA700P2200CC (reply within 24 hours)
