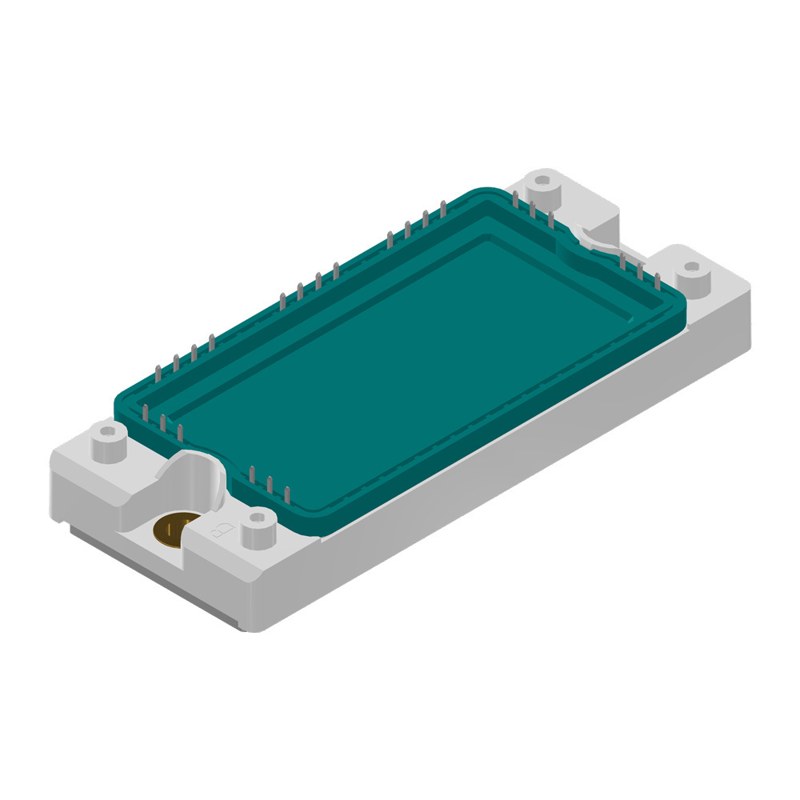

MDNA240U2200ED IXYS - Rectifier Bridge

MDNA240U2200ED Description

MDNA240U2200ED is a 2200 V / 240 A rectifier bridge module from IXYS (E2-Pack package). Typical applications: diode for main rectification, For single and three phase bridge configurations, Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.

USComponent supplies MDNA240U2200ED and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

IXYS MDNA240U2200ED is used for Diode for main rectification, For single and three phase bridge configurations, Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.

Key Specifications

MDNA240U2200ED is a 2200 V / 240 A rectifier bridge module from IXYS (now part of Littelfuse) in a E2-Pack package. Source: IXYS (Littelfuse) datasheet and product data.

Parameter	Value
Manufacturer	IXYS (Littelfuse)
Product type	Rectifier bridge module
Configuration	Three-phase rectifier bridge
Repetitive peak reverse voltage (VRRM)	2200 V
Average output current (IdAV)	240 A
Package	E2-Pack
Isolation voltage	4300 V~
Weight	175 g
Supply status	Active
Datasheet	Available on this page (PDF)
