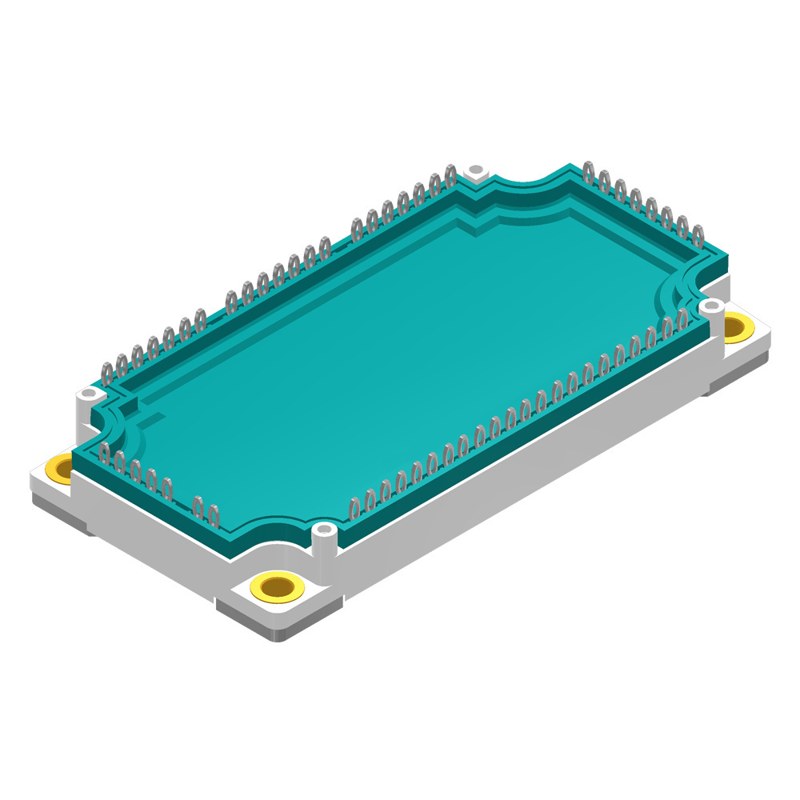

MDNA660U2200PTEH IXYS - Rectifier Bridge

MDNA660U2200PTEH Description

MDNA660U2200PTEH is a 2200 V / 660 A rectifier bridge module from IXYS (E3-Pack package). Typical applications: diode for main rectification, For three phase bridge configurations, Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.

USComponent supplies MDNA660U2200PTEH and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

IXYS MDNA660U2200PTEH is used for Diode for main rectification, For three phase bridge configurations, Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.

Key Specifications

MDNA660U2200PTEH is a 2200 V / 660 A rectifier bridge module from IXYS (now part of Littelfuse) in a E3-Pack package. Source: IXYS (Littelfuse) datasheet and product data.

Parameter	Value
Manufacturer	IXYS (Littelfuse)
Product type	Rectifier bridge module
Configuration	Three-phase rectifier bridge + NTC
Repetitive peak reverse voltage (VRRM)	2200 V
Average output current (IdAV)	660 A
Package	E3-Pack
Isolation voltage	4300 V~
Weight	270 g
Supply status	Active
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for MDNA660U2200PTEH (reply within 24 hours)
