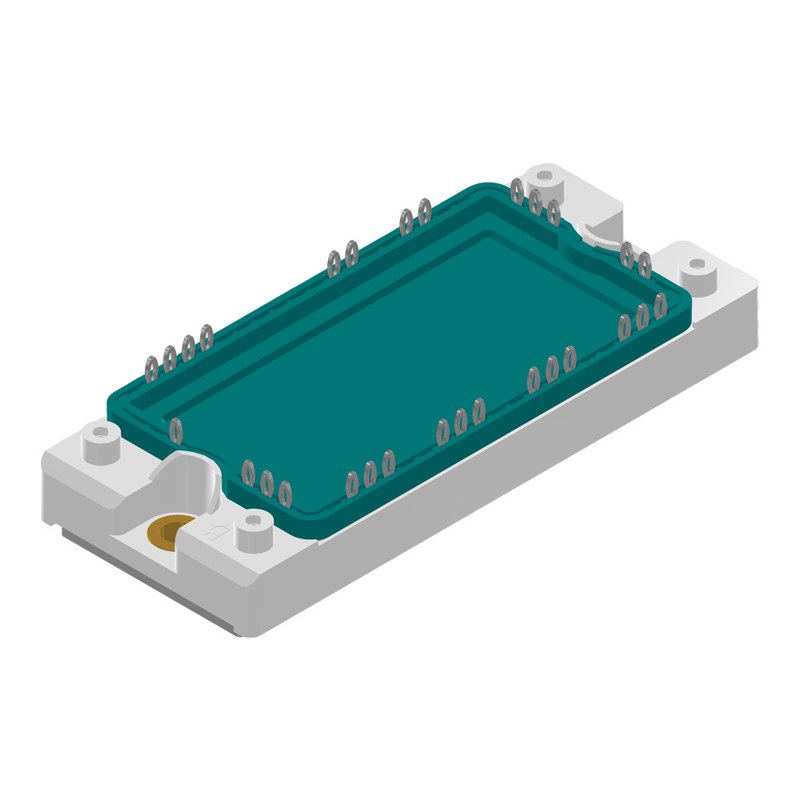

MDNA280UB2200PTED IXYS - Rectifier Bridge

MDNA280UB2200PTED Description

MDNA280UB2200PTED is a 2200 V / 280 A rectifier bridge module from IXYS (E2-Pack package). Typical applications: 3~ Rectifier with brake unit for drive inverters.

USComponent supplies MDNA280UB2200PTED and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

IXYS MDNA280UB2200PTED is used for 3~ Rectifier with brake unit for drive inverters.

Key Specifications

MDNA280UB2200PTED is a 2200 V / 280 A rectifier bridge module from IXYS (now part of Littelfuse) in a E2-Pack package. Source: IXYS (Littelfuse) datasheet and product data.

Parameter	Value
Manufacturer	IXYS (Littelfuse)
Product type	Rectifier bridge module
Configuration	Three-phase rectifier bridge + Brake Unit + NTC
Repetitive peak reverse voltage (VRRM)	2200 V
Average output current (IdAV)	280 A
Package	E2-Pack
Isolation voltage	4300 V~
Weight	270 g
Supply status	Obsolete
Datasheet	Available on this page (PDF)

Status: IXYS / Littelfuse lists MDNA280UB2200PTED as obsolete. USComponent can still source MDNA280UB2200PTED and help you find a suitable alternative.

Technical document (PDF)  |  Request a quote for MDNA280UB2200PTED (reply within 24 hours)
