DCG17P1200HR IXYS - Diode Module

Category: Diode & Rectifier Modules

Specifications: 1200V, 18.5A

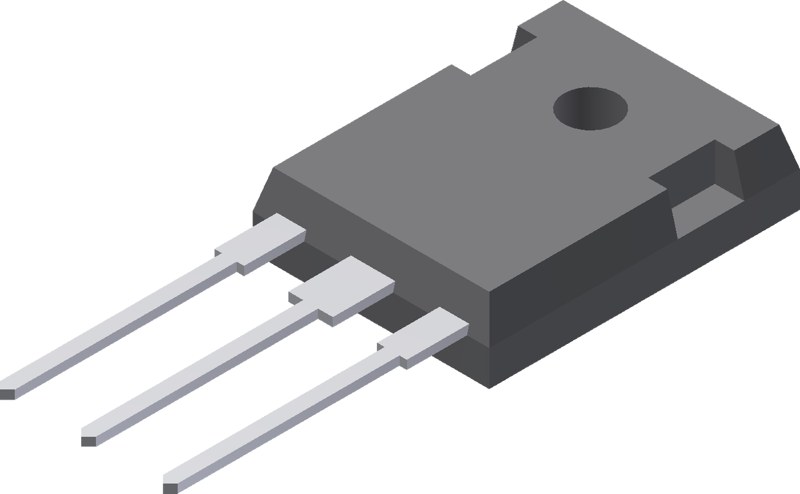

DCG17P1200HR IXYS Diode Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

DCG17P1200HR Description

DCG17P1200HR is a 1200 V / 18.5 A SiC Schottky diode module from IXYS (ISO247 package). Typical applications: solar inverter, Uninterruptible power supply (UPS), Welding equipment, Switched-mode power supplies, Medical equipment, High speed rectifier.

USComponent supplies DCG17P1200HR and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Ultra fast switching
  • Zero reverse recovery
  • Zero forward recovery
  • Temperature independent switching behavior
  • Positive temperature coefficient of forward voltage
  • TVJM = 175°C

Target Applications

IXYS DCG17P1200HR is used for Solar inverter, Uninterruptible power supply (UPS), Welding equipment, Switched-mode power supplies, Medical equipment, High speed rectifier.

Key Specifications

DCG17P1200HR is a 1200 V / 18.5 A SiC Schottky diode module from IXYS (now part of Littelfuse) in a ISO247 package. Source: IXYS (Littelfuse) datasheet and product data.

ParameterValue
ManufacturerIXYS (Littelfuse)
Product typeSiC Schottky diode module
ConfigurationSingle-Phase Bridges
Repetitive peak reverse voltage (VRRM)2 x 1200 V
Average forward current (IFAV)18.5 A
PackageISO247
Isolation voltage3000 V~
Weight6 g
Supply statusObsolete
DatasheetAvailable on this page (PDF)

Status: IXYS / Littelfuse lists DCG17P1200HR as obsolete. USComponent can still source DCG17P1200HR and help you find a suitable alternative.

Technical document (PDF)  |  Request a quote for DCG17P1200HR (reply within 24 hours)
