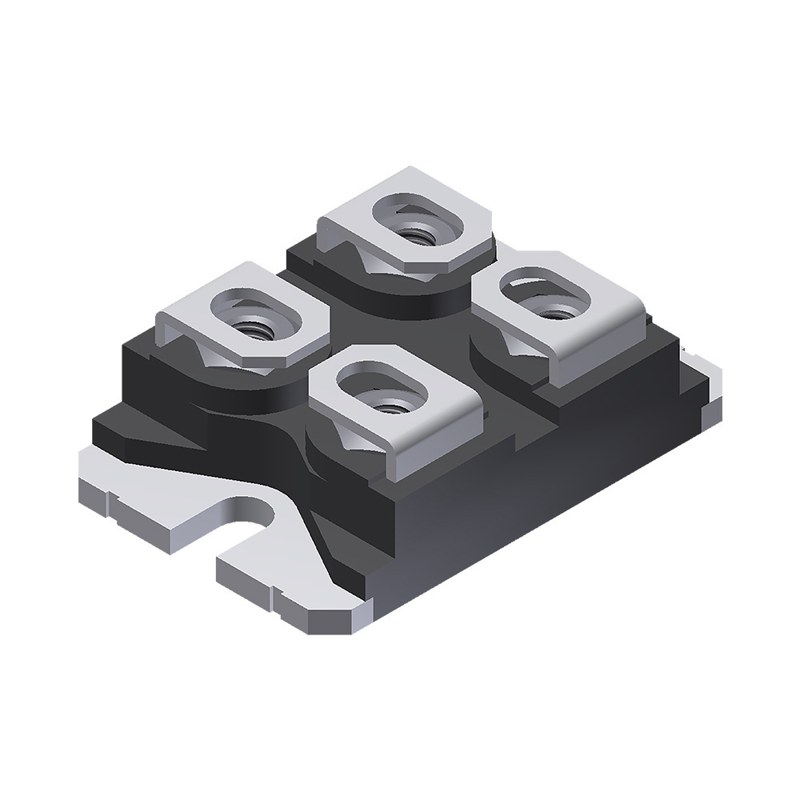

DCG160X650NA IXYS - Diode Module

DCG160X650NA Description

DCG160X650NA is a 650 V / 80 A SiC Schottky diode module from IXYS (SOT-227B (minibloc) package). Typical applications: solar inverter, Uninterruptible power supply (UPS), Welding equipment, Switched-mode power supplies, Medical equipment, High speed rectifier.

USComponent supplies DCG160X650NA and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

IXYS DCG160X650NA is used for Solar inverter, Uninterruptible power supply (UPS), Welding equipment, Switched-mode power supplies, Medical equipment, High speed rectifier.

Key Specifications

DCG160X650NA is a 650 V / 80 A SiC Schottky diode module from IXYS (now part of Littelfuse) in a SOT-227B (minibloc) package. Source: IXYS (Littelfuse) datasheet and product data.

Parameter	Value
Manufacturer	IXYS (Littelfuse)
Product type	SiC Schottky diode module
Configuration	Dual Diodes
Repetitive peak reverse voltage (VRRM)	650 V
Average forward current (IFAV)	80 A
Package	SOT-227B (minibloc)
Isolation voltage	2500 V~
Weight	30 g
Supply status	Obsolete
Datasheet	Available on this page (PDF)

Status: IXYS / Littelfuse lists DCG160X650NA as obsolete. USComponent can still source DCG160X650NA and help you find a suitable alternative.
