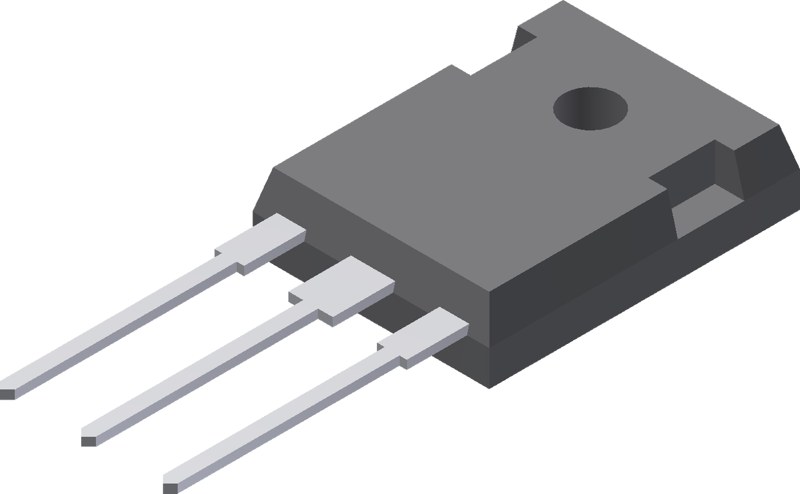

DCG10P1200HR IXYS - Diode Module

DCG10P1200HR Description

DCG10P1200HR is a 1200 V / 12.5 A SiC Schottky diode module from IXYS (ISO247 package). Typical applications: solar inverter •, Uninterruptible power supply (UPS) •, Welding equipment •, Switched-mode power supplies •, Medical equipment •, High speed rectifier •.

USComponent supplies DCG10P1200HR and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

IXYS DCG10P1200HR is used for Solar inverter •, Uninterruptible power supply (UPS) •, Welding equipment •, Switched-mode power supplies •, Medical equipment •, High speed rectifier •.

Key Specifications

DCG10P1200HR is a 1200 V / 12.5 A SiC Schottky diode module from IXYS (now part of Littelfuse) in a ISO247 package. Source: IXYS (Littelfuse) datasheet and product data.

Parameter	Value
Manufacturer	IXYS (Littelfuse)
Product type	SiC Schottky diode module
Configuration	Single-Phase Bridges
Repetitive peak reverse voltage (VRRM)	2 x 1200 V
Average forward current (IFAV)	12.5 A
Package	ISO247
Weight	6 g
Supply status	Active
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for DCG10P1200HR (reply within 24 hours)
