FZ1800R12KL4CInfineon - IGBT Module

FZ1800R12KL4C Description

The Infineon Technologies FZ1800R12KL4C is an IGBT module rated at 1200 V and 2850 A, available from USComponent. This type of device is widely used in variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the FZ1800R12KL4C.

Target Applications

Infineon FZ1800R12KL4C is use for High Power Converters, Motor Drives, UPS Systems and Wind Turbines.

Key Specifications

Manufacturer	Infineon Technologies (eupec)
Configuration	Single switch - IGBT with free-wheeling diode
Technology	Low-loss IGBT2 (KL4C)
VCES	1200 V
IC	1800 A (TC = 80 °C) / 2850 A (TC = 25 °C)
ICRM	3600 A (tp = 1 ms)
Diode IF / IFRM	1800 A / 3600 A
Diode I²t	590 kA²s (10 ms, 125 °C)

FZ1800R12KL4C Video

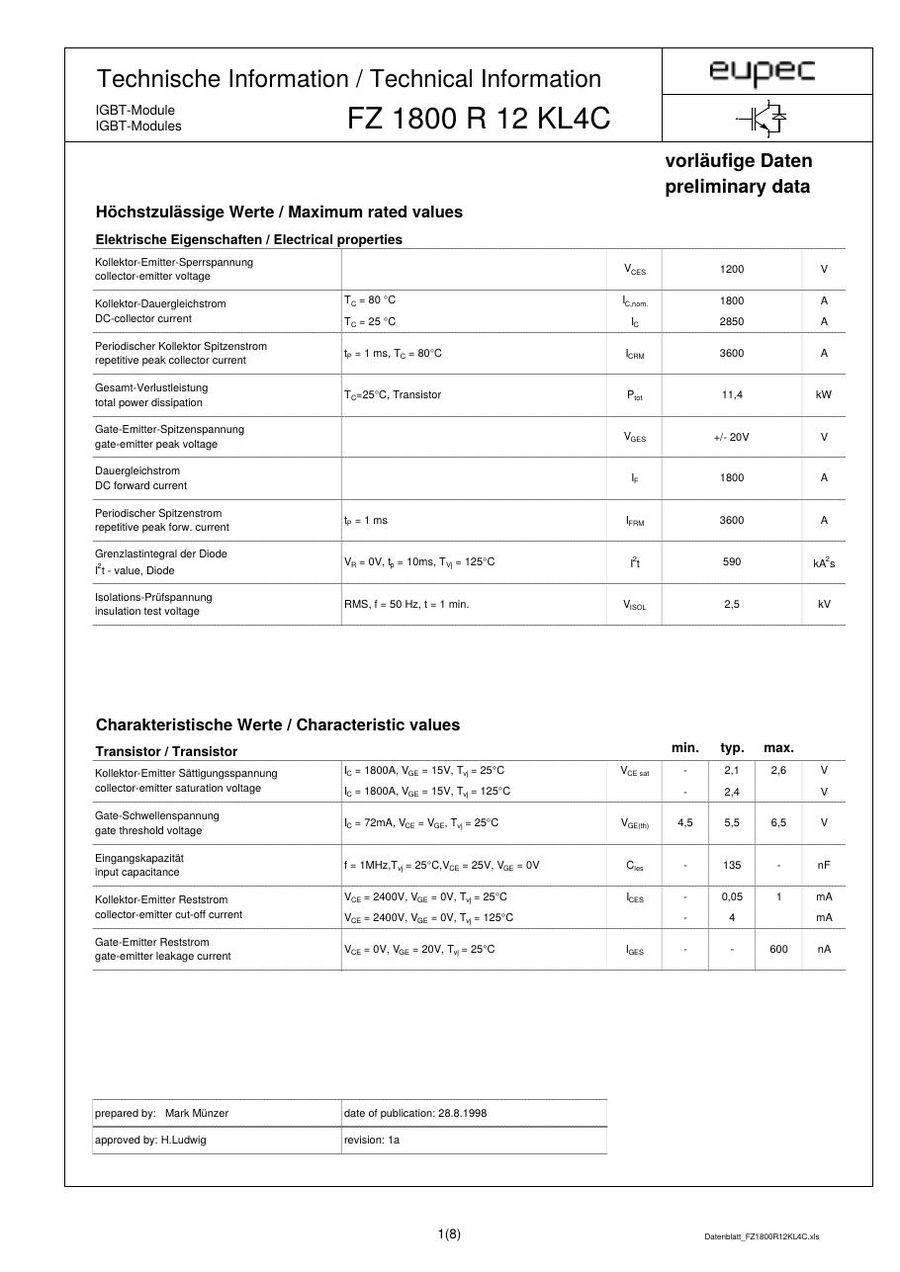

Download FZ1800R12KL4C Datasheet
