FZ2400R12KL4C Infineon - IGBT

FZ2400R12KL4C Description

Infineon Technologies (formerly Eupec) makes the FZ2400R12KL4C, a 1200 V IGBT module. It is built with a single switch with its freewheeling diode (1-in-1). It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the FZ2400R12KL4C and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Infineon FZ2400R12KL4C is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

FZ2400R12KL4C is a 1,200 V, 2400 A IGBT module, single switch configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Single switch
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	2400 A

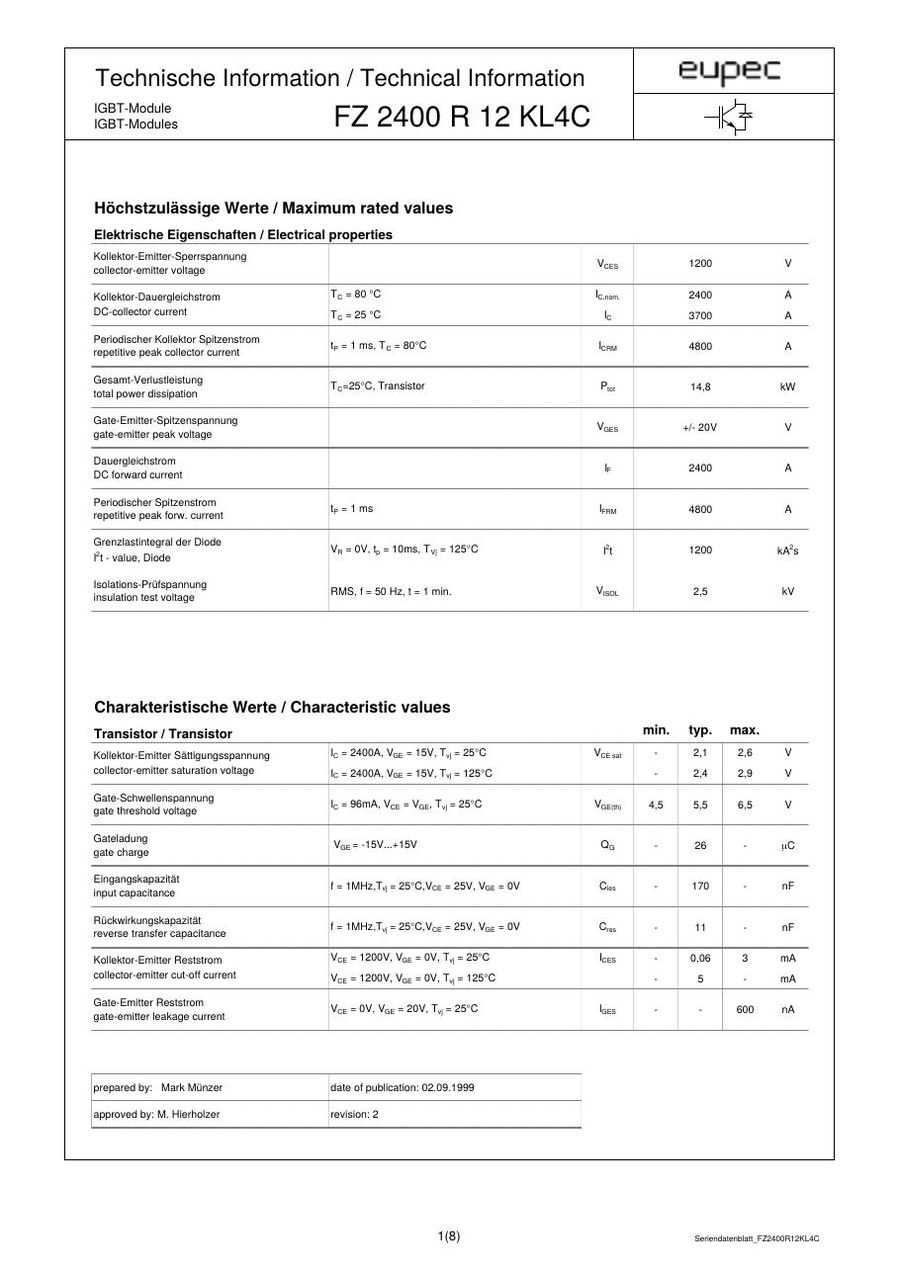

Datasheet	Available on this page (PDF)

FZ2400R12KL4C Video

Technical document (PDF)  |  Request a quote for FZ2400R12KL4C (reply within 24 hours)
