FZ1800R12HP4_B9 Infineon - IGBT Module

Also written as: FZ1800R12HP4-B9

Category: IGBT Modules

Specifications: 1200V, 1800A

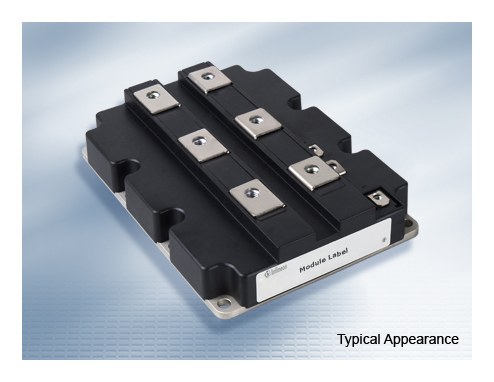

FZ1800R12HP4_B9 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FZ1800R12HP4_B9 Description

FZ1800R12HP4_B9 is a 1200 V / 1800 A single switch IGBT module from Infineon Technologies. Typical applications: high Power Converters, Motor Drives, Wind Turbines.

USComponent supplies FZ1800R12HP4_B9 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Extended Operation Temperature Tvj op
  • High Power Density
  • IHM B Housing

Target Applications

Infineon FZ1800R12HP4_B9 is used for High Power Converters, Motor Drives, Wind Turbines.

Key Specifications

FZ1800R12HP4_B9 is a 1200 V / 1800 A single switch IGBT module from Infineon Technologies (IHM-B package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationSingle switch
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)1800 A
PackageIHM-B
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FZ1800R12HP4_B9 (reply within 24 hours)
