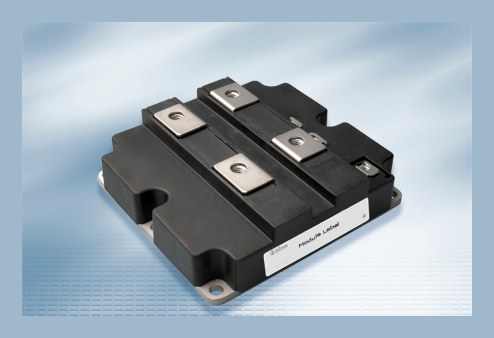

FZ1600R33HE4 Infineon - IGBT Module

FZ1600R33HE4 Description

FZ1600R33HE4 is a 3300 V, 1600 A Infineon IHM-B IGBT module (single switch), used for high-power converters, medium-voltage converters, motor drives, traction drives.

USComponent supplies FZ1600R33HE4 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon FZ1600R33HE4 is used for high-power converters, medium-voltage converters, motor drives, traction drives, UPS systems and active frontend (energy recovery).

Key Specifications

FZ1600R33HE4 is a 3,300 V, 1,600 A Infineon IHM-B IGBT module. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Single switch (1-in-1)
Collector-emitter voltage (VCES)	3,300 V
Collector current (IC nom)	1,600 A
Technology	Trench/Fieldstop IGBT4 with Emitter Controlled 4 diode
Package	IHM-B

Technical document (PDF)  |  Request a quote for FZ1600R33HE4 (reply within 24 hours)
