FZ1600R17HP4_B21 Infineon - IGBT Module

Also written as: FZ1600R17HP4-B21

Category: IGBT Modules

Specifications: 1700V, 1600A

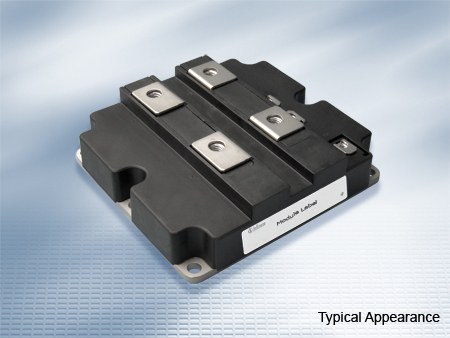

FZ1600R17HP4_B21 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FZ1600R17HP4_B21 Description

FZ1600R17HP4_B21 is a 1700 V / 1600 A single switch IGBT module from Infineon Technologies. Typical applications: resonant inverter applications, High power converters, Traction drives, Wind turbines.

USComponent supplies FZ1600R17HP4_B21 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Extended operating temperature Tvj op
  • Low Vcesat
  • 4 kV AC 1min insulation
  • AISiC base plate for increased thermal cycling
  • Lastwechselfestigkeit capability
  • High creepage and clearance distances
  • High power and thermal cycling capability
  • High power density

Target Applications

Infineon FZ1600R17HP4_B21 is used for Resonant inverter applications, High power converters, Traction drives, Wind turbines.

Key Specifications

FZ1600R17HP4_B21 is a 1700 V / 1600 A single switch IGBT module from Infineon Technologies (IHM-B package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationSingle switch
Collector-emitter voltage (VCES)1700 V
Nominal collector current (IC nom)1600 A
PackageIHM-B
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FZ1600R17HP4_B21 (reply within 24 hours)
