FZ1200R33HE3Infineon - IGBT

FZ1200R33HE3 Description

FZ1200R33HE3 is a part number for a high power insulated gate bipolar transistor (IGBT) module manufactured by Infineon Technologies, a company that specializes in semiconductor solutions for a wide range of applications. The FZ1200R33HE3 IGBT module is designed to handle high voltage and high current applications, such as industrial motor drives, power supplies, and renewable energy systems. It has a collector-emitter voltage rating of 1200V and a collector current rating of 1200A, making it suitable for high power applications. The IGBT module features a half-bridge configuration, which includes two IGBTs and two diodes. This configuration is designed to provide efficient and reliable switching performance, with a maximum switching frequency of up to 8 kHz. The FZ1200R33HE3 IGBT module is housed in a high-performance package that provides excellent thermal management and electrical isolation. The package has a low profile design and a compact footprint, making it easy to integrate into existing electronic systems. Overall, the FZ1200R33HE3 IGBT module is a high-quality component that provides reliable and efficient performance in high power applications. Its high voltage and high current capabilities, as well as its advanced package design, make it a popular choice among designers and engineers in the power electronics industry.

Summary of Features

FZ1200R33HE3 is a 3300V 1200A IGBT.

Target Applications

Infineon FZ1200R33HE3 is used for . Chopper Applications . Medium Voltage Converters . Motor Drives . Traction Drives . UPS Systems . Wind Turbines.

Key Specifications

Manufacturer	Infineon Technologies
Configuration	Single switch - IGBT with free-wheeling diode
Package	IHM-B
Technology	Fast Trench/Fieldstop IGBT3, Emitter Controlled 3 diode
VCES	3300 V
IC	1200 A (TC = 95 °C)
ICRM	2400 A (tp = 1 ms)
VCE(sat) typ.	3.15 V @ 1200 A (Tvj = 125 °C)
Partial discharge test voltage	2.6 kV RMS (QPD ≤ 10 pC)
Isolation test voltage	6.0 kV RMS, 50 Hz, 1 min
Mounting torque	4.25 - 5.75 Nm
Operating junction temperature	-40 to +150 °C

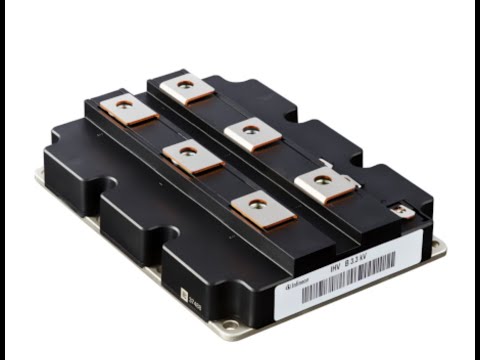

FZ1200R33HE3 Video
