FZ1000R33HL3 Infineon - IGBT Module

Category: IGBT Modules

Specifications: 3300V, 1000A

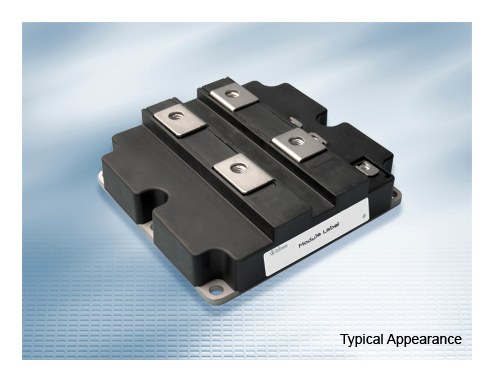

FZ1000R33HL3 Infineon IGBT Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

FZ1000R33HL3 Description

FZ1000R33HL3 is a 3300 V / 1000 A single switch IGBT module from Infineon Technologies. Typical applications: chopper applications, Medium-voltage converters, Motor drives, Traction drives, UPS systems, Wind turbines.

USComponent supplies FZ1000R33HL3 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Unbeatable robustness
  • High DC stability
  • High short-circuit capability
  • VCE,sat with positive temperature coefficient

Target Applications

Infineon FZ1000R33HL3 is used for Chopper applications, Medium-voltage converters, Motor drives, Traction drives, UPS systems, Wind turbines.

Key Specifications

FZ1000R33HL3 is a 3300 V / 1000 A single switch IGBT module from Infineon Technologies (IHM-B package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationSingle switch
Collector-emitter voltage (VCES)3300 V
Nominal collector current (IC nom)1000 A
PackageIHM-B
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FZ1000R33HL3 (reply within 24 hours)
