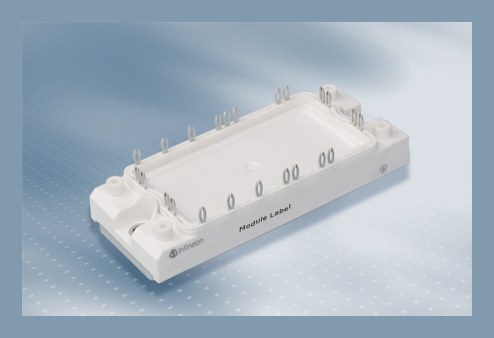

FS75R12KT4_B11 Infineon - IGBT Module

FS75R12KT4_B11 Description

FS75R12KT4_B11 is a 1200 V, 75 A Infineon EconoPACK 2 IGBT module (six-pack), used for auxiliary inverters, motor drives, servo drives.

USComponent supplies FS75R12KT4_B11 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon FS75R12KT4_B11 is used for auxiliary inverters, motor drives and servo drives.

Key Specifications

FS75R12KT4_B11 is a 1,200 V, 75 A Infineon EconoPACK 2 IGBT module. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Six-pack (3-phase inverter)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC nom)	75 A
Technology	Trench/Fieldstop IGBT4 with Emitter Controlled 4 diode
Package	EconoPACK 2
