FS100R12W2T7_B11 Infineon - IGBT Module

Also written as: FS100R12W2T7-B11

Category: IGBT Modules

Specifications: 1200V, 100A

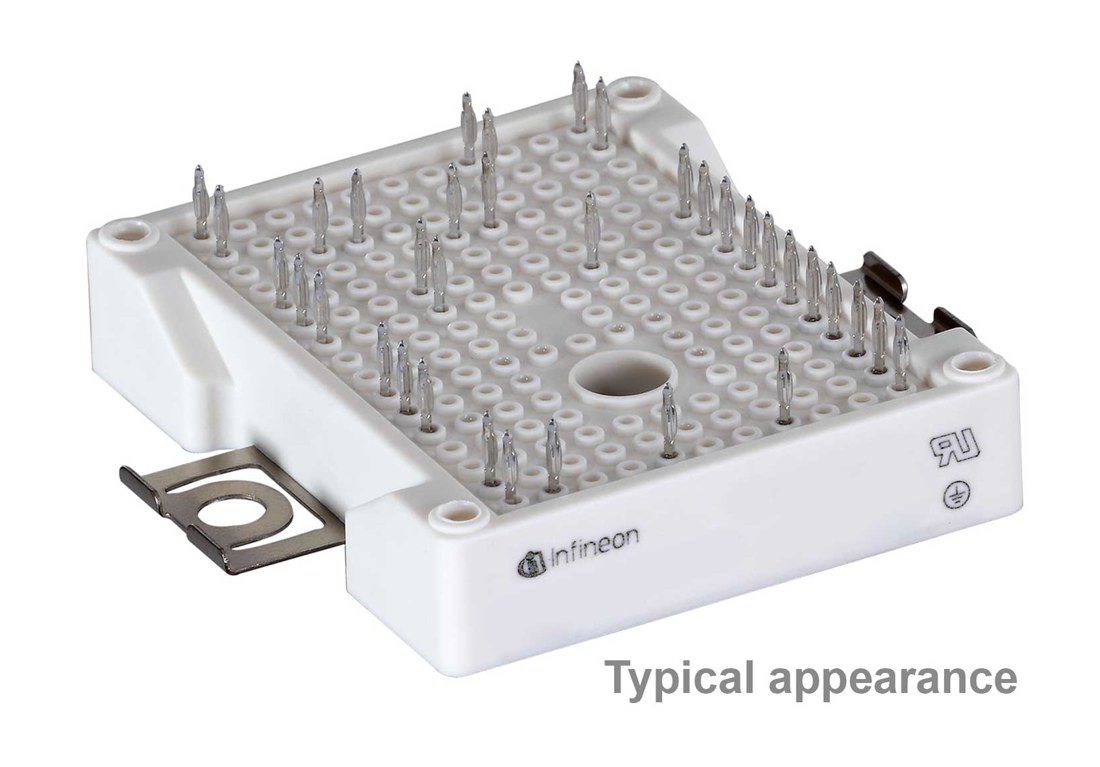

FS100R12W2T7_B11 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FS100R12W2T7_B11 Description

FS100R12W2T7_B11 is a 1200 V / 100 A six-pack (3-phase bridge) IGBT module from Infineon Technologies. Typical applications: auxiliary inverters, Servo drives, Air conditioning, Motor drives, UPS systems.

USComponent supplies FS100R12W2T7_B11 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • TRENCHSTOP IGBT7
  • Overload operation up to 175°C
  • PressFIT contact technology
  • High power density

Target Applications

Infineon FS100R12W2T7_B11 is used for Auxiliary inverters, Servo drives, Air conditioning, Motor drives, UPS systems.

Key Specifications

FS100R12W2T7_B11 is a 1200 V / 100 A six-pack (3-phase bridge) IGBT module from Infineon Technologies (EasyPACK package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationSix-pack (3-phase bridge)
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)100 A
PackageEasyPACK
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FS100R12W2T7_B11 (reply within 24 hours)
