FS35R12W1T4_B11 Infineon - IGBT Module

Also written as: FS35R12W1T4-B11

Category: IGBT Modules

Specifications: 1200V, 35A

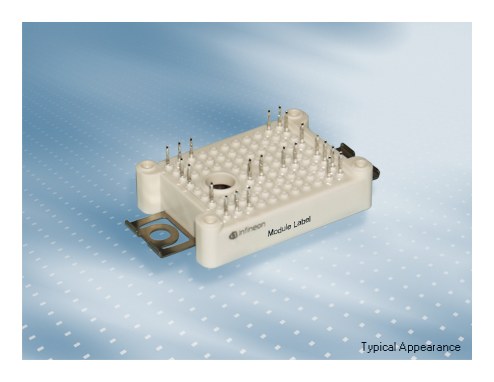

FS35R12W1T4_B11 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FS35R12W1T4_B11 Description

FS35R12W1T4_B11 is a 1200 V / 35 A six-pack (3-phase bridge) IGBT module from Infineon Technologies. Typical applications: air Conditioning, Motor Drives, Servo Drives, UPS Systems.

USComponent supplies FS35R12W1T4_B11 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Low Switching Losses
  • Low Vcesat
  • Trench IGBT 4
  • Vcesat with positive Temperature Coefficient
  • Al2O33 Substrate with Low Thermal Resistance
  • Compact design
  • PressFIT Contact Technology
  • Rugged mounting due to integrated mounting

Target Applications

Infineon FS35R12W1T4_B11 is used for Air Conditioning, Motor Drives, Servo Drives, UPS Systems.

Key Specifications

FS35R12W1T4_B11 is a 1200 V / 35 A six-pack (3-phase bridge) IGBT module from Infineon Technologies (EasyPACK package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationSix-pack (3-phase bridge)
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)35 A
PackageEasyPACK
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FS35R12W1T4_B11 (reply within 24 hours)
