FS200R12W3T7_B11 Infineon - IGBT Module

Also written as: FS200R12W3T7-B11

Category: IGBT Modules

Specifications: 1200V, 200A

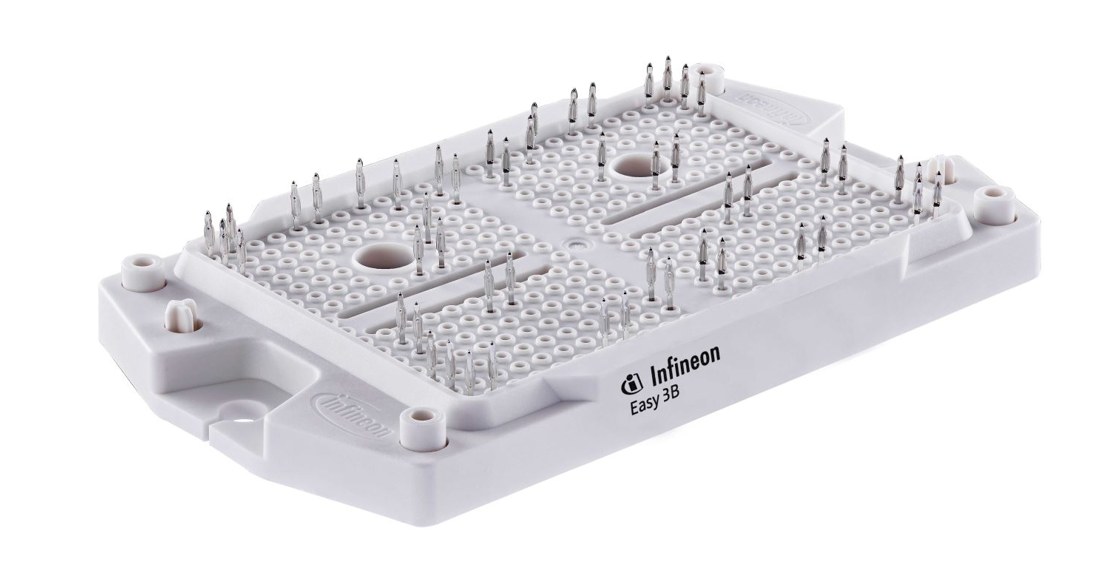

FS200R12W3T7_B11 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FS200R12W3T7_B11 Description

FS200R12W3T7_B11 is a 1200 V / 200 A six-pack (3-phase bridge) IGBT module from Infineon Technologies. Typical applications: motor drives, Servo drives, Auxiliary inverters.

USComponent supplies FS200R12W3T7_B11 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Overload operation up to 175°C
  • TRENCHSTOP IGBT7
  • Al2O3 substrate with low thermal resistance
  • Copper base plate
  • High power and thermal cycling capability

Target Applications

Infineon FS200R12W3T7_B11 is used for Motor drives, Servo drives, Auxiliary inverters.

Key Specifications

FS200R12W3T7_B11 is a 1200 V / 200 A six-pack (3-phase bridge) IGBT module from Infineon Technologies (EasyPACK package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationSix-pack (3-phase bridge)
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)200 A
PackageEasyPACK
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FS200R12W3T7_B11 (reply within 24 hours)
