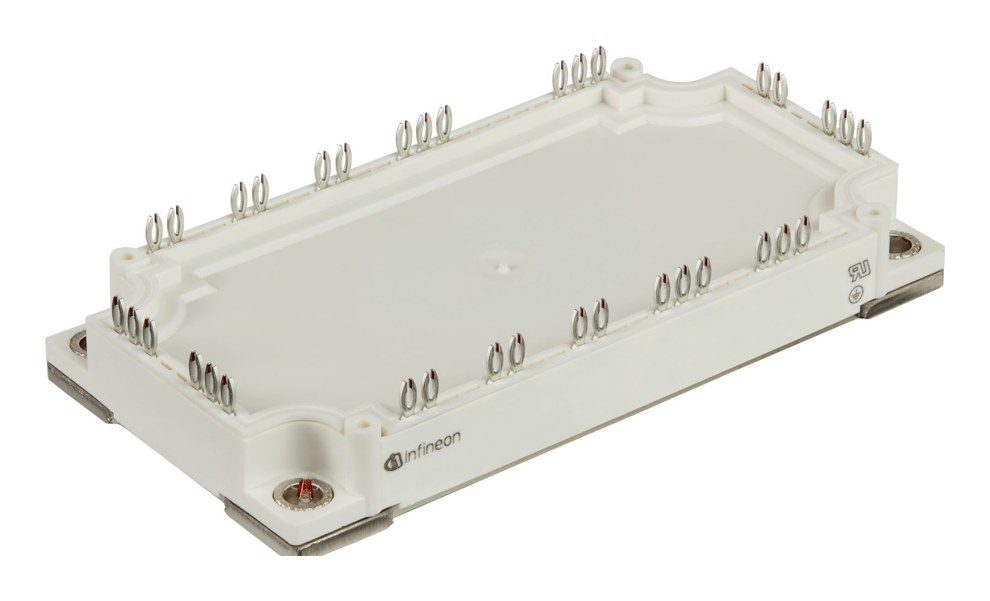

FS200R12KT4RP_B11 Infineon - IGBT Module

FS200R12KT4RP_B11 Description

FS200R12KT4RP_B11 is a 1200 V, 200 A Infineon EconoPACK 3 IGBT module (six-pack), used for auxiliary inverters, motor drives, servo drives.

USComponent supplies FS200R12KT4RP_B11 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon FS200R12KT4RP_B11 is used for auxiliary inverters, motor drives and servo drives.

Key Specifications

FS200R12KT4RP_B11 is a 1,200 V, 200 A Infineon EconoPACK 3 IGBT module. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Six-pack (3-phase inverter)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC nom)	200 A
Technology	Trench/Fieldstop IGBT4 with Emitter Controlled 4 diode
Package	EconoPACK 3

Replacement for discontinued parts: Infineon recommends FS200R12KT4RP_B11 as the replacement for FS200R12KT4RP (Product Discontinuation PD_122_18). Check the datasheet limits and gate drive conditions when replacing.
