FP25R12W1T7 Infineon - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 25A

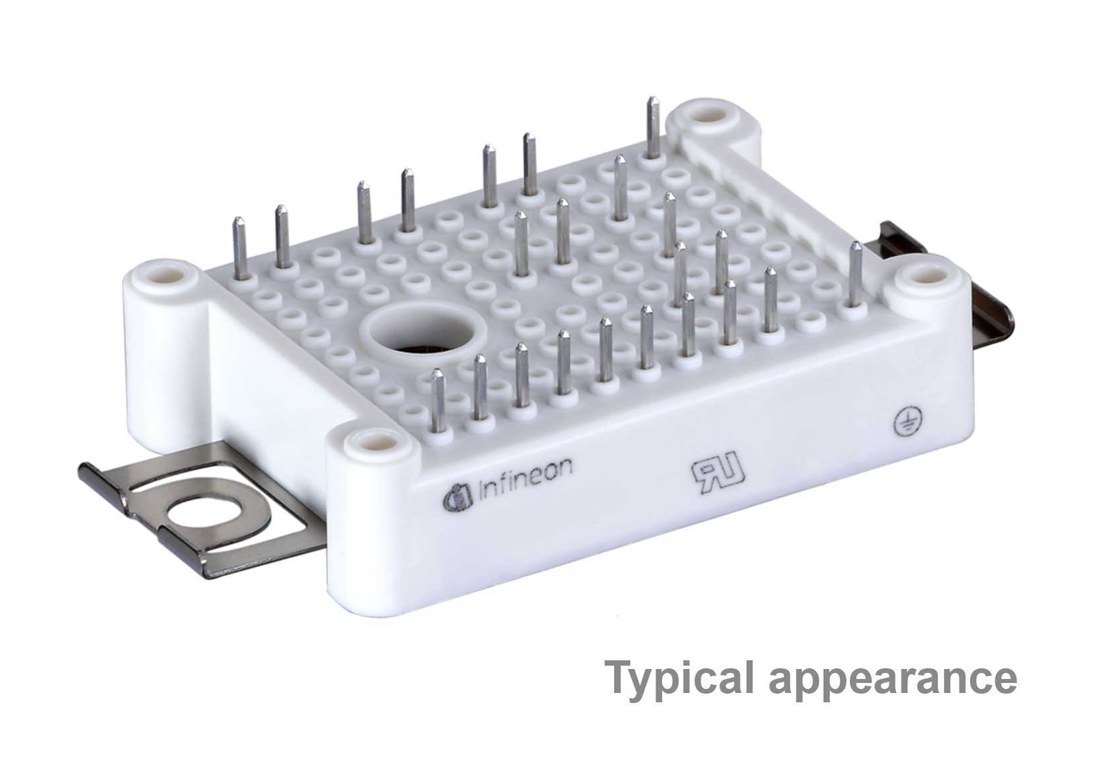

FP25R12W1T7 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FP25R12W1T7 Description

FP25R12W1T7 is a 1200 V / 25 A PIM (rectifier + brake + inverter) IGBT module from Infineon Technologies. Typical applications: auxiliary inverters, Motor drives, Air conditioning.

USComponent supplies FP25R12W1T7 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Overload operation up to 175°C
  • TRENCHSTOP IGBT7
  • Solder contact technology
  • 2.5 kV AC 1 minute insulation

Target Applications

Infineon FP25R12W1T7 is used for Auxiliary inverters, Motor drives, Air conditioning.

Key Specifications

FP25R12W1T7 is a 1200 V / 25 A PIM (rectifier + brake + inverter) IGBT module from Infineon Technologies (EasyPIM package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationPIM (rectifier + brake + inverter)
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)25 A
PackageEasyPIM
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FP25R12W1T7 (reply within 24 hours)
