FP15R12W2T4 Infineon - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 15A

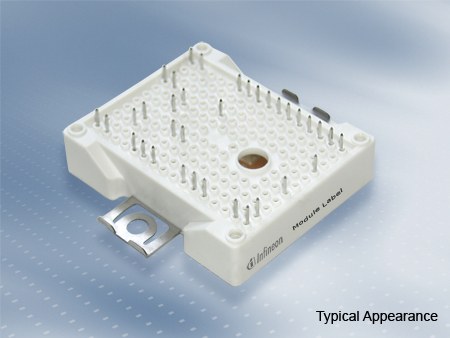

FP15R12W2T4 Infineon IGBT Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

FP15R12W2T4 Description

FP15R12W2T4 is a 1200 V / 15 A PIM (rectifier + brake + inverter) IGBT module from Infineon Technologies. Typical applications: auxiliary Inverters, Air Conditioning, Motor Drives.

USComponent supplies FP15R12W2T4 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Low Switching Losses
  • Low Vcesat
  • Trench IGBT 4
  • Vcesat with positive Temperature Coefficient
  • Al2O3 Substrate with Low Thermal Resistance
  • Compact design
  • RoHS compliant
  • Rugged mounting due to integrated mounting

Target Applications

Infineon FP15R12W2T4 is used for Auxiliary Inverters, Air Conditioning, Motor Drives.

Key Specifications

FP15R12W2T4 is a 1200 V / 15 A PIM (rectifier + brake + inverter) IGBT module from Infineon Technologies (EasyPIM package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationPIM (rectifier + brake + inverter)
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)15 A
PackageEasyPIM
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FP15R12W2T4 (reply within 24 hours)
