FP150R12KT4 Infineon - IGBT Module

FP150R12KT4 Description

The FP150R12KT4 from Infineon Technologies is an IGBT module. It is built with a PIM layout, with the input rectifier, brake chopper and three-phase inverter in one package. Modules like this do the heavy switching in motor drives, UPS systems, induction heaters and renewable-energy inverters.

Looking for a replacement FP150R12KT4? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

Target Applications

Infineon FP150R12KT4 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

FP150R12KT4 is a 1,200 V, 150 A IGBT module, pIM (converter + brake + inverter) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	PIM (converter + brake + inverter)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	150 A

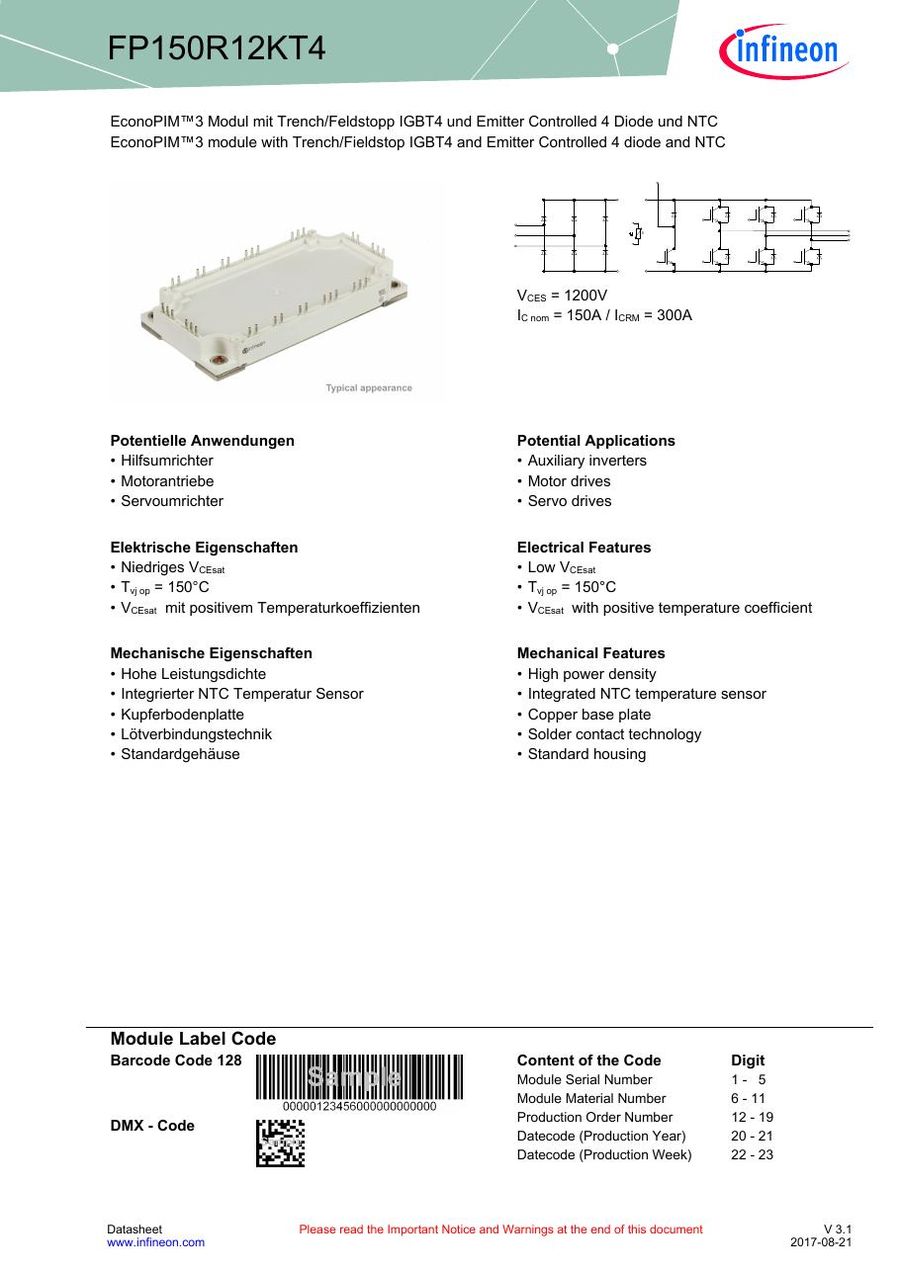

Datasheet	Available on this page (PDF)
