FF225R12MS4 Infineon - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 225A

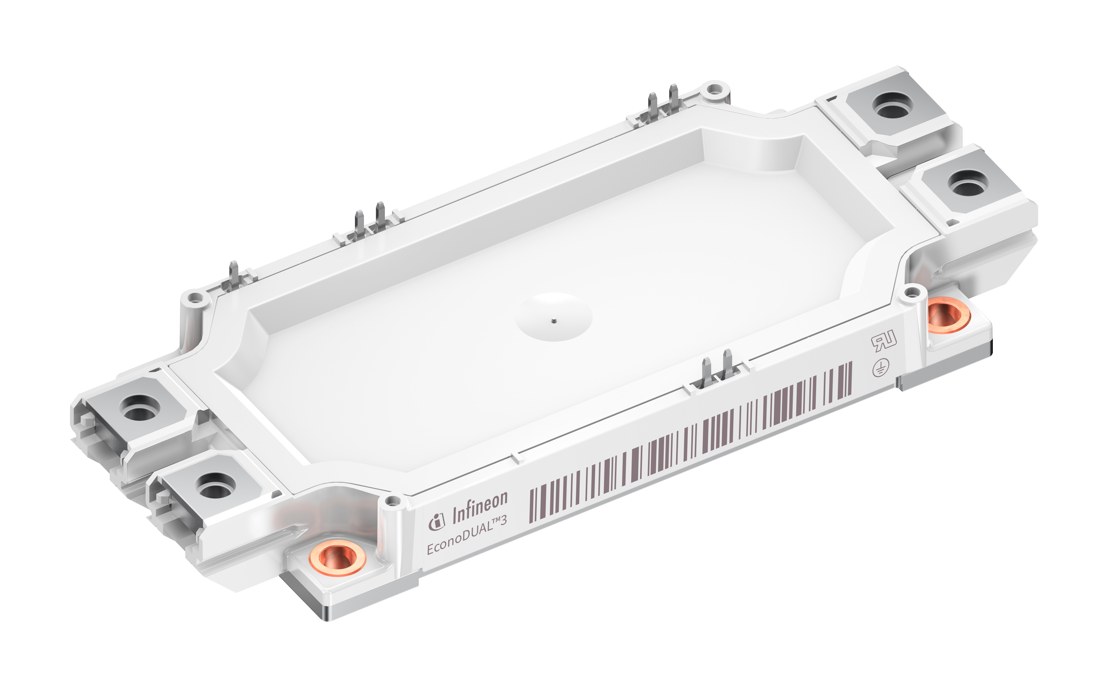

FF225R12MS4 Infineon IGBT Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

FF225R12MS4 Description

FF225R12MS4 is a 1200 V / 225 A dual (half-bridge) IGBT module from Infineon Technologies. Typical applications: industrial drives, Energy storage systems (ESS).

USComponent supplies FF225R12MS4 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Integrated temperature sensor
  • Standard housing
  • Solder contact technology
  • Isolated base plate
  • High power density

Target Applications

Infineon FF225R12MS4 is used for Industrial drives, Energy storage systems (ESS).

Key Specifications

FF225R12MS4 is a 1200 V / 225 A dual (half-bridge) IGBT module from Infineon Technologies (EconoDUAL 3 package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationDual (half-bridge)
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)225 A
PackageEconoDUAL 3
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FF225R12MS4 (reply within 24 hours)

Related Part Numbers

FF225R12ME3FF225R12ME4FF225R12ME4PFF225R12ME4P_B11
FF225R12ME4_B11FF225R17ME3FF225R17ME4FF225R17ME4P
FF225R17ME4P_B11FF225R17ME4_B11FF225R17ME7_B11FF225R65T3E3
FF2000UXTR33T2M1FF2000XTR17IE5FF200R06KE3FF200R06ME3
