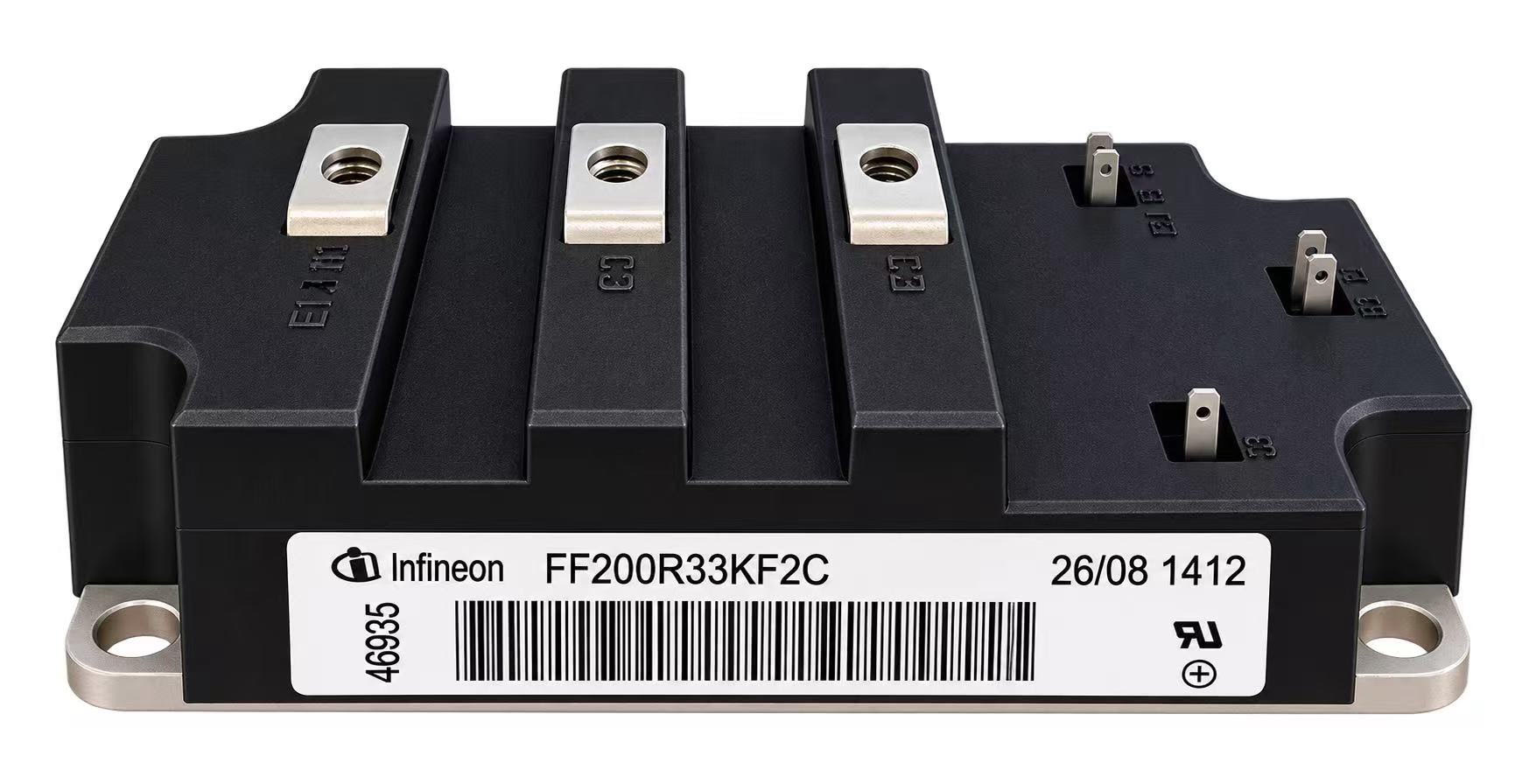

FF200R33KF2C Infineon - IGBT Module

FF200R33KF2C Description

Infineon Technologies makes the FF200R33KF2C, a 3300 V, 200 A IGBT module. Typical uses include motor drives, servo amplifiers, induction heating, welding power sources and grid-tie inverters.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the FF200R33KF2C; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Summary of Features

Target Applications

Infineon FF200R33KF2C is used for Motor control and drives, Commercial, construction and agricultural vehicles (CAV), Wind energy systems and Traction.

Key Specifications

FF200R33KF2C is a 3300 V / 200 A IGBT module from Infineon Technologies. Source: manufacturer datasheet (detailed).

Parameter	Value
Manufacturer	Infineon Technologies
Product type	IGBT module
Configuration	Dual (half-bridge)
Collector-emitter voltage (VCES)	3300 V
Continuous DC collector current (IC nom)	200 A (TC = 80 °C); IC 330 A (TC = 25 °C)
Repetitive peak collector current (ICRM)	400 A (tP = 1 ms)
Collector-emitter saturation voltage (VCE sat)	typ. 3.40 V / max. 4.25 V (IC = 200 A, VGE = 15 V, Tvj = 25 °C)
Total power dissipation (Ptot)	2.20 kW (TC = 25 °C)
Diode forward current (IF)	200 A
Short-circuit current (ISC)	1000 A (tP ≤ 10 µs, Tvj = 125 °C, VCC = 2500 V)
Isolation test voltage (VISOL)	6.0 kV (RMS, 50 Hz, 1 min)
Operating junction temperature (Tvj op)	-40 to 125 °C
Datasheet	Available on this page (PDF)
