FF225R65T3E3 Infineon - IGBT Module

Category: IGBT Modules

Specifications: 6500V, 225A

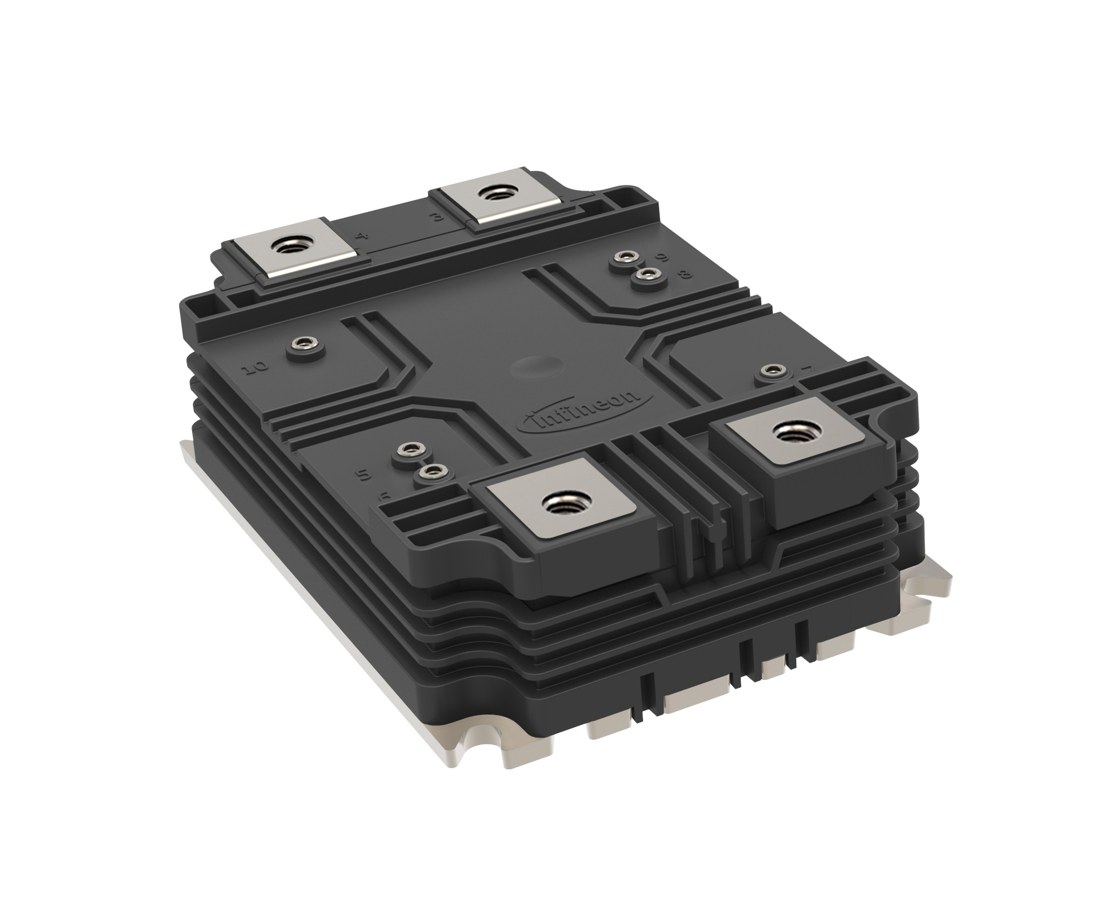

FF225R65T3E3 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FF225R65T3E3 Description

FF225R65T3E3 is a 6500 V / 225 A dual (half-bridge) IGBT module from Infineon Technologies. Typical applications: traction drives, Medium-voltage converters.

USComponent supplies FF225R65T3E3 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • High dynamic robustness
  • Trench IGBT 3
  • Package with CTI > 600
  • Package with enhanced insulation of 10.4 kV AC 60 s
  • AlSiC base plate for increased thermal cycling capability

Target Applications

Infineon FF225R65T3E3 is used for Traction drives, Medium-voltage converters.

Key Specifications

FF225R65T3E3 is a 6500 V / 225 A dual (half-bridge) IGBT module from Infineon Technologies (XHP 3 package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationDual (half-bridge)
Collector-emitter voltage (VCES)6500 V
Nominal collector current (IC nom)225 A
PackageXHP 3
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FF225R65T3E3 (reply within 24 hours)
