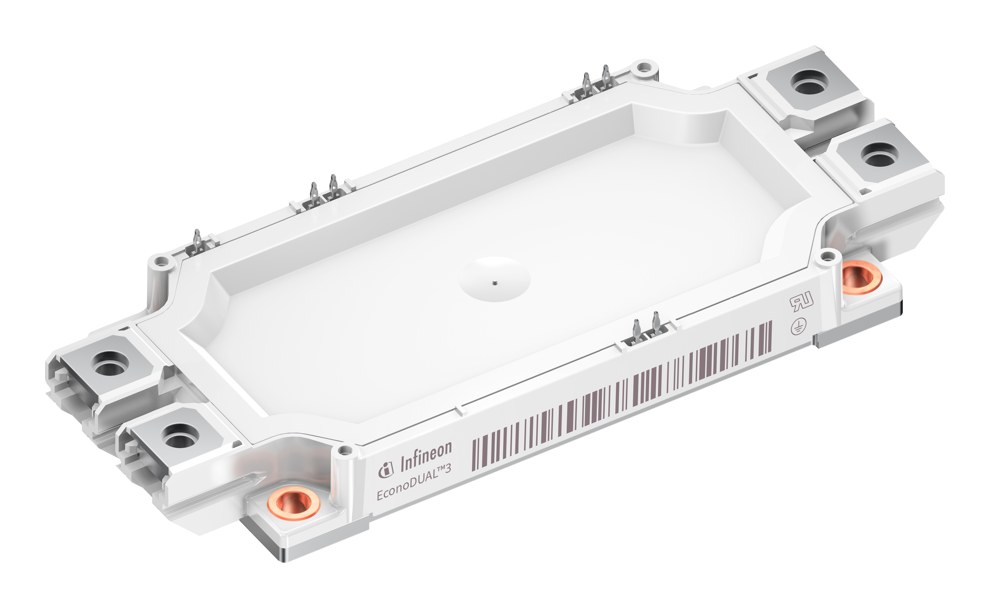

FF225R17ME4_B11 Infineon - IGBT Module

FF225R17ME4_B11 Description

FF225R17ME4_B11 is a 1700 V, 225 A Infineon EconoDUAL 3 dual IGBT module (IGBT4), used for high-power converters, wind turbines and motor drives.

USComponent supplies FF225R17ME4_B11 and other Infineon IGBT modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon FF225R17ME4_B11 is used for wind turbines, servo drives, motor drives and UPS systems.

Key Specifications

FF225R17ME4_B11 is a 1,700 V, 225 A Infineon EconoDUAL 3 IGBT module. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (half-bridge)
Collector-emitter voltage (VCES)	1,700 V
Collector current (IC nom)	225 A
Technology	Trench/Fieldstop IGBT4 with Emitter Controlled diode
Package	EconoDUAL 3
Max. operating junction temperature	150 °C

Technical document (PDF)  |  Request a quote for FF225R17ME4_B11 (reply within 24 hours)
