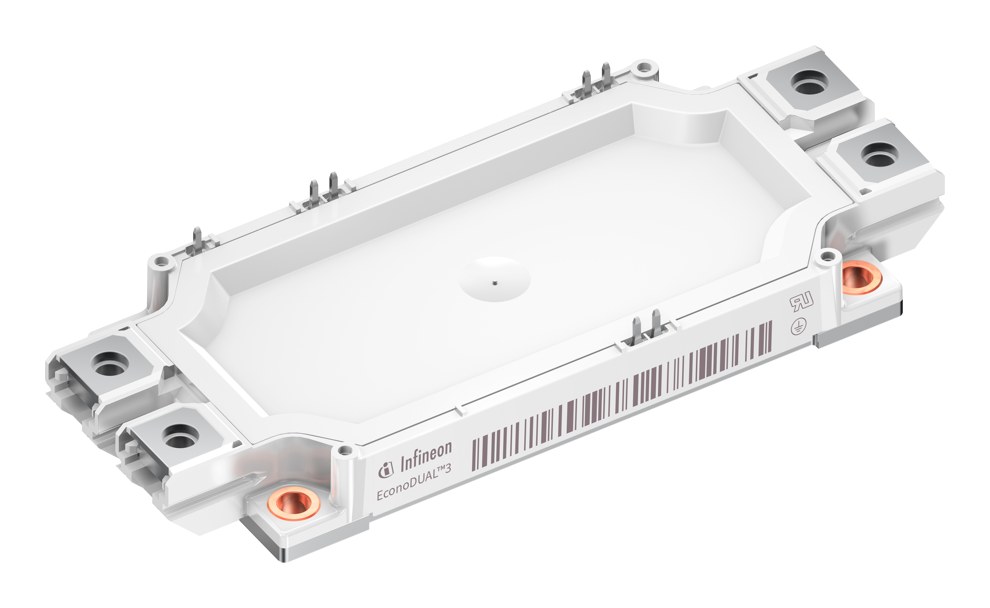

FF225R12ME4P Infineon - IGBT Module

FF225R12ME4P Description

FF225R12ME4P is a 1200 V, 225 A Infineon EconoDUAL 3 dual IGBT module (IGBT4), used for high-power converters, wind turbines and motor drives.

USComponent supplies FF225R12ME4P and other Infineon IGBT modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon FF225R12ME4P is used for motor drives, servo drives, UPS systems and wind turbines.

Key Specifications

FF225R12ME4P is a 1,200 V, 225 A Infineon EconoDUAL 3 IGBT module. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (half-bridge)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC nom)	225 A
Technology	Trench/Fieldstop IGBT4 with Emitter Controlled diode
Package	EconoDUAL 3
Max. operating junction temperature	150 °C

Technical document (PDF)  |  Request a quote for FF225R12ME4P (reply within 24 hours)
