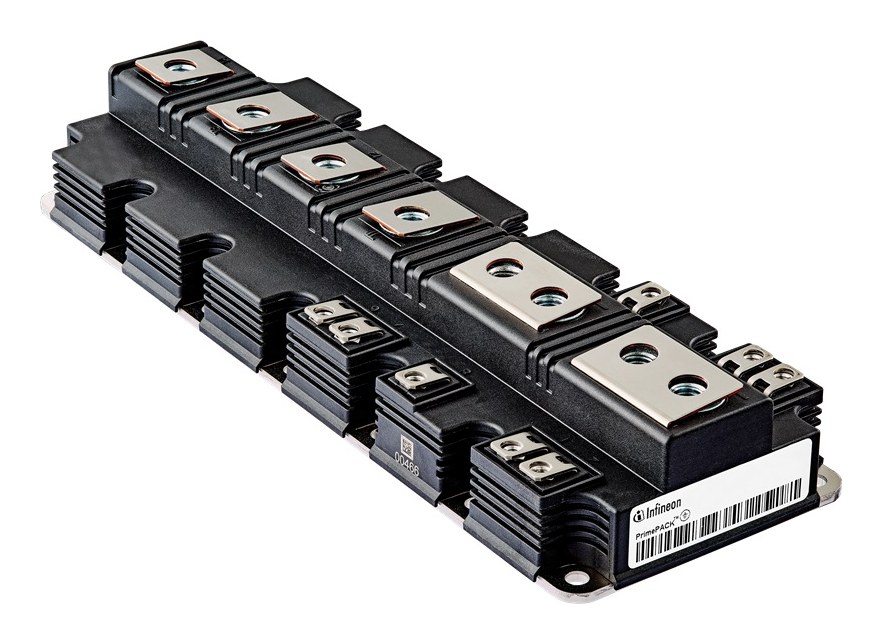

FF1800R23IE7P Infineon - IGBT Module

FF1800R23IE7P Description

FF1800R23IE7P is a 2300 V, 1800 A Infineon PrimePACK 3+ B-series dual IGBT module (IGBT7), used for 1,500 V DC solar inverters, wind converters and high-power drives.

USComponent supplies FF1800R23IE7P and other Infineon IGBT modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon FF1800R23IE7P is used for 1,500 V DC solar inverters, wind converters and high-power drives.

Key Specifications

FF1800R23IE7P is a 2,300 V, 1,800 A Infineon PrimePACK 3+ B-series IGBT module. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (half-bridge)
Collector-emitter voltage (VCES)	2,300 V
Collector current (IC nom)	1,800 A
Technology	TRENCHSTOP IGBT7 with Emitter Controlled 7 diode
Package	PrimePACK 3+ B-series
Max. operating junction temperature	150 °C

Technical document (PDF)  |  Request a quote for FF1800R23IE7P (reply within 24 hours)
