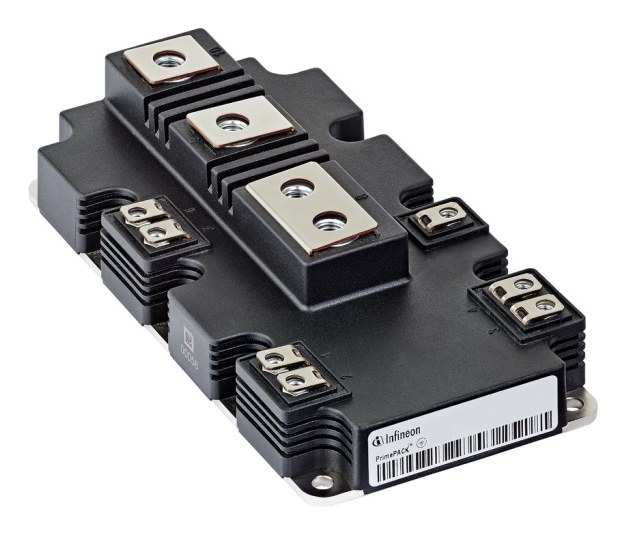

FF1200R12IE5P Infineon - IGBT Module

FF1200R12IE5P Description

FF1200R12IE5P is a 1200 V, 1200 A Infineon PrimePACK 2 dual IGBT module (IGBT5), used for motor drives, high-power converters and UPS systems.

USComponent supplies FF1200R12IE5P and other Infineon IGBT modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon FF1200R12IE5P is used for high power converters, motor drives and UPS systems.

Key Specifications

FF1200R12IE5P is a 1,200 V, 1,200 A Infineon PrimePACK 2 IGBT module. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (half-bridge)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC nom)	1,200 A
Technology	Trench/Fieldstop IGBT5 with Emitter Controlled 5 diode
Package	PrimePACK 2
Max. operating junction temperature	175 °C

Technical document (PDF)  |  Request a quote for FF1200R12IE5P (reply within 24 hours)
