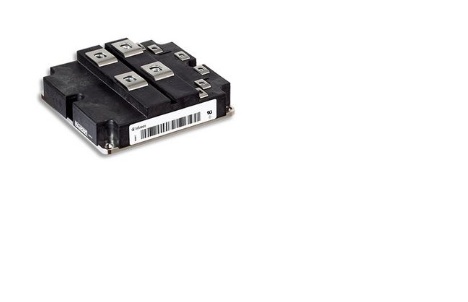

FF1200R17KP4_B2 Infineon - IGBT Module

FF1200R17KP4_B2 Description

Infineon Technologies makes the FF1200R17KP4_B2, an IGBT module. The module contains two switches in a half-bridge (2-in-1) arrangement. Typical uses include motor drives, servo amplifiers, induction heating, welding power sources and grid-tie inverters.

Looking for a replacement FF1200R17KP4_B2? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Target Applications

Infineon FF1200R17KP4_B2 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

Manufacturer	Infineon Technologies
Configuration	Dual - two IGBTs (half-bridge) with diodes
Package	IHM-A, AlSiC base plate
Technology	Soft-switching Trench IGBT4, enlarged diode for regenerative operation
VCES	1700 V
IC nom / ICRM	1200 A / 2400 A
Isolation	4 kV AC, 1 min
UL	E83335

Replacement for discontinued part: Infineon recommends FF1200R17KP4_B2 as the replacement for FF1200R17KE3_B2 (Product Discontinuation PD_121_16). Check the datasheet limits and gate drive conditions when replacing.
