FF1200R12KE3Infineon - IGBT Module

FF1200R12KE3 Description

The Infineon Technologies FF1200R12KE3 is an IGBT module rated at 1200 V and 1200 A, available from USComponent. Typical applications for this type of device include variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the FF1200R12KE3.

Summary of Features

FF1200R12KE3 is a 1200V 1200A IGBT Module.

Target Applications

Infineon FF1200R12KE3 is used for High power converters and Motor drives.

Key Specifications

Manufacturer	Infineon Technologies
Configuration	Dual - two IGBTs (half-bridge) with diodes
Technology	IGBT3
VCES	1200 V
IC	1200 A (TC = 70 °C)
ICRM	2400 A (tp = 1 ms)
Isolation test voltage	2.5 kV RMS, 50 Hz, 1 min
Mounting torque	M5: 4.25 - 5.75 Nm
Terminal torque	M4: 1.7 - 2.3 Nm; M8: 8 - 10 Nm
Operating junction temperature	-40 to +125 °C

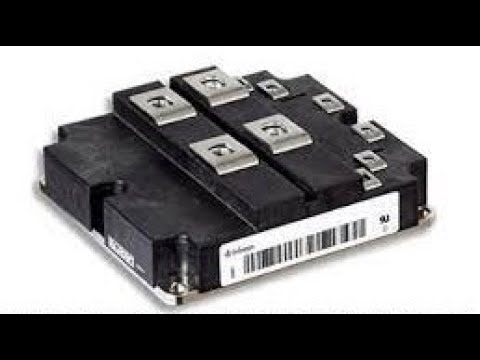

FF1200R12KE3 Video
