FF1200R12IE5 Infineon - IGBT Module

Replacement for: Infineon recommends FF1200R12IE5 as the replacement for FF1200R12KE3, FZ800R12KS4_B2. We also supply the original parts.

Category: IGBT Modules

Specifications: 1200V, 1200A

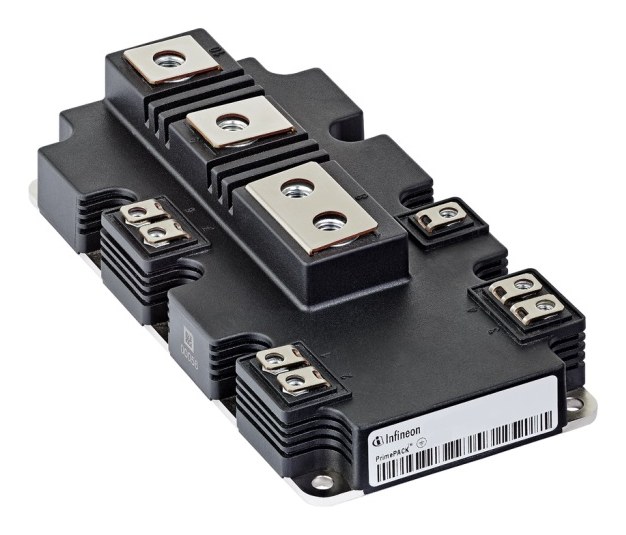

FF1200R12IE5 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FF1200R12IE5 Description

FF1200R12IE5 is a 1200 V, 1200 A Infineon PrimePACK 2 dual IGBT module (IGBT5), used for motor drives, high-power converters and UPS systems.

USComponent supplies FF1200R12IE5 and other Infineon IGBT modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • 1,200 V / 1,200 A dual (half-bridge) IGBT module
  • Trench/Fieldstop IGBT5 with Emitter Controlled 5 diode
  • PrimePACK 2 housing with integrated NTC temperature sensor
  • Operating junction temperature up to 175 °C

Target Applications

Infineon FF1200R12IE5 is used for UPS systems, high power converters and motor drives.

Key Specifications

FF1200R12IE5 is a 1,200 V, 1,200 A Infineon PrimePACK 2 IGBT module. Source: manufacturer datasheet.

ParameterValue
Product typeIGBT module
ConfigurationDual (half-bridge)
Collector-emitter voltage (VCES)1,200 V
Collector current (IC nom)1,200 A
TechnologyTrench/Fieldstop IGBT5 with Emitter Controlled 5 diode
PackagePrimePACK 2
Max. operating junction temperature175 °C

Technical document (PDF)  |  Request a quote for FF1200R12IE5 (reply within 24 hours)

Related Part Numbers

FF1500R12IE5
1200V, 1500A		FF1800R12IE5
1200V, 1800A		FF900R12IE4
1200V, 900A		FF600R12IE4
1200V, 600A
FF450R12IE4
1200V, 450A		FF300R12IE4
1200V, 300A		FF1000R17IE4
1700V, 1000A		FF1800R23IE7
2300V, 1800A
FF1200R12IE5P
1200V, 1200A		FF1200R12KE3
1200V, 1200A		FF1200R17IP5
1700V, 1200A		FF1200R17IP5P
1700V, 1200A
FF1200R17KE3
1700V, 1200A		FF1200R17KE3_B2
1700V, 1200A		FF1200R17KP4_B2
1700V, 1200A		FF1200XTR17T2P5
1700V, 1200A
