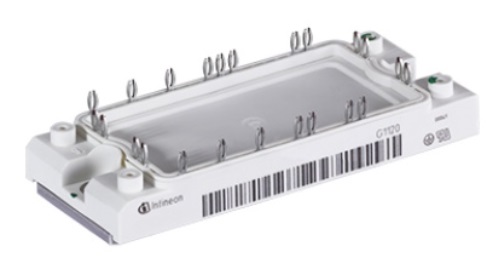

F4-50R12KS4 Infineon - Power Transistor Module

F4-50R12KS4 Description

Infineon Technologies F4-50R12KS4 is an IGBT module rated at 1200 V. Typical uses include motor drives, servo amplifiers, induction heating, welding power sources and grid-tie inverters.

Request a quote for the F4-50R12KS4 and our team will get back to you with price, quantity available and lead time. We ship worldwide. As with any power device, please check the manufacturer's datasheet to confirm it matches your design.

Target Applications

Infineon F4-50R12KS4 is used for Drives, UPS, Induction Heating, Welding and Aircon.

Key Specifications

Manufacturer	Infineon Technologies
Configuration	H-bridge (4-pack) IGBT module
Technology	Fast IGBT2 (KS4)
VCES	1200 V
IC	50 A (TC = 70 °C) / 70 A (TC = 25 °C)
ICRM	100 A (tp = 1 ms)
Isolation test voltage	2.5 kV RMS, 50 Hz, 1 min
Mounting torque	3.00 - 6.00 Nm
Weight	180 g
Operating junction temperature	-40 to +125 °C
