F4-75R12KS4_B11 Infineon - IGBT Module

Also written as: F4-75R12KS4-B11

Category: IGBT Modules

Specifications: 1200V, 75A

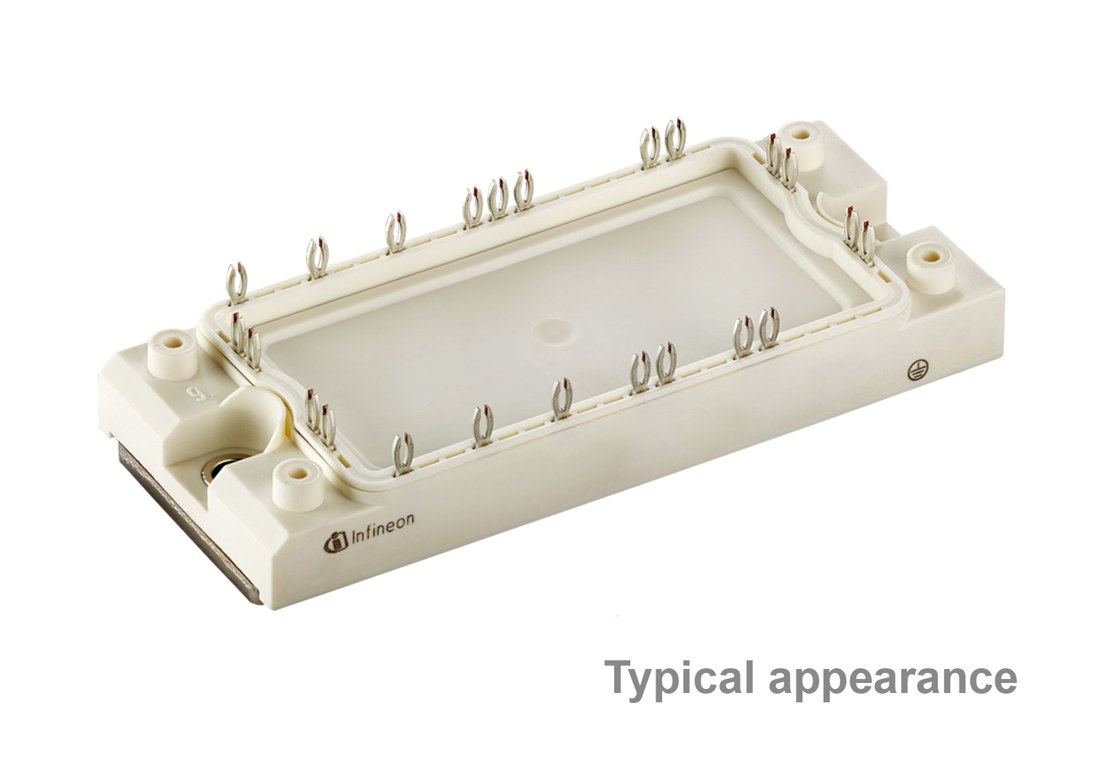

F4-75R12KS4_B11 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

F4-75R12KS4_B11 Description

F4-75R12KS4_B11 is a 1200 V / 75 A four-pack (H-bridge) IGBT module from Infineon Technologies. Typical applications: inductive heating and welding, UPS systems.

USComponent supplies F4-75R12KS4_B11 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • High short-circuit capability
  • Low switching losses
  • Isolated base plate
  • Copper base plate
  • PressFIT contact technology
  • RoHS compliant

Target Applications

Infineon F4-75R12KS4_B11 is used for Inductive heating and welding, UPS systems.

Key Specifications

F4-75R12KS4_B11 is a 1200 V / 75 A four-pack (H-bridge) IGBT module from Infineon Technologies (EconoPACK 2 package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationFour-pack (H-bridge)
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)75 A
PackageEconoPACK 2
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for F4-75R12KS4_B11 (reply within 24 hours)
