F4-50R12KS4_B11 Infineon - IGBT Module

Also written as: F4-50R12KS4-B11

Category: IGBT Modules

Specifications: 1200V, 50A

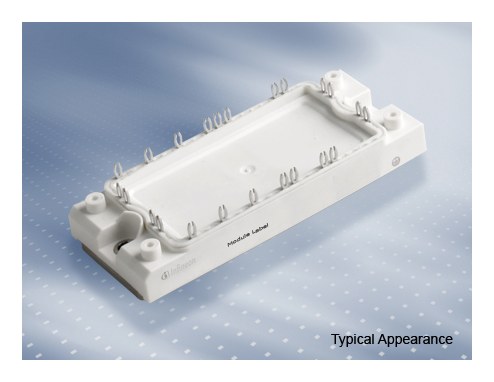

F4-50R12KS4_B11 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

F4-50R12KS4_B11 Description

F4-50R12KS4_B11 is a 1200 V / 50 A four-pack (H-bridge) IGBT module from Infineon Technologies. Typical applications: inductive Heating and Welding, UPS Systems.

USComponent supplies F4-50R12KS4_B11 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • High Short Circuit Capability, Self Limiting Short
  • Kurzschlussstrom Circuit Current
  • Low Switching Losses
  • Isolated Base Plate
  • Copper Base Plate
  • PressFIT Contact Technology
  • RoHS compliant
  • Standard Housing

Target Applications

Infineon F4-50R12KS4_B11 is used for Inductive Heating and Welding, UPS Systems.

Key Specifications

F4-50R12KS4_B11 is a 1200 V / 50 A four-pack (H-bridge) IGBT module from Infineon Technologies (EconoPACK 2 package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationFour-pack (H-bridge)
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)50 A
PackageEconoPACK 2
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for F4-50R12KS4_B11 (reply within 24 hours)
