F3L11MR12W2M1_B74 Infineon - IGBT Module

Also written as: F3L11MR12W2M1-B74

Category: IGBT Modules

Specifications: 1200V, 100A

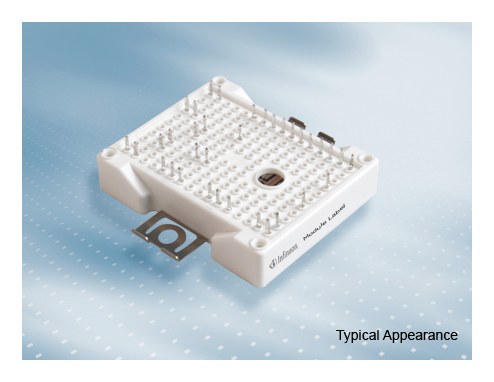

F3L11MR12W2M1_B74 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

F3L11MR12W2M1_B74 Description

F3L11MR12W2M1_B74 is a 1200 V / 100 A 3-level IGBT module from Infineon Technologies. Typical applications: three-level applications, High-frequency switching application, Solar applications.

USComponent supplies F3L11MR12W2M1_B74 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Increased DC-link voltage
  • High current density
  • Low switching losses
  • Rugged mounting due to integrated mounting clamps
  • PressFIT contact technology
  • Integrated NTC temperature sensor

Target Applications

Infineon F3L11MR12W2M1_B74 is used for Three-level applications, High-frequency switching application, Solar applications.

Key Specifications

F3L11MR12W2M1_B74 is a 1200 V / 100 A 3-level IGBT module from Infineon Technologies (EasyPACK package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
Configuration3-level
Drain-source voltage (VDSS)1200 V
Nominal drain current (ID nom)100 A
PackageEasyPACK
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for F3L11MR12W2M1_B74 (reply within 24 hours)
