DF300R07W2H3_B77 Infineon - IGBT Module

Also written as: DF300R07W2H3-B77

Category: IGBT Modules

Specifications: 650V, 150A

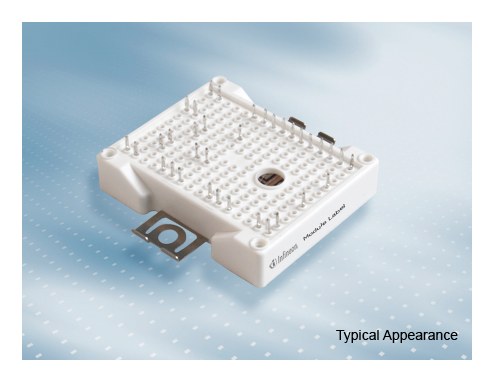

DF300R07W2H3_B77 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

DF300R07W2H3_B77 Description

DF300R07W2H3_B77 is a 650 V / 150 A chopper / booster IGBT module from Infineon Technologies. Typical applications: three-level applications, Motor drives, Solar applications.

USComponent supplies DF300R07W2H3_B77 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Increased blocking voltage capability up to 650 V
  • Low inductive design
  • Low switching losses
  • Al2O3 substrate with low thermal resistance
  • Compact design

Target Applications

Infineon DF300R07W2H3_B77 is used for Three-level applications, Motor drives, Solar applications.

Key Specifications

DF300R07W2H3_B77 is a 650 V / 150 A chopper / booster IGBT module from Infineon Technologies (EasyPACK 2B package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationChopper / booster
Collector-emitter voltage (VCES)650 V
Nominal collector current (IC nom)150 A
PackageEasyPACK 2B
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for DF300R07W2H3_B77 (reply within 24 hours)
