DF100R07W1H5FP_B53 Infineon - IGBT Module

Also written as: DF100R07W1H5FP-B53

Category: IGBT Modules

Specifications: 650V, 50A

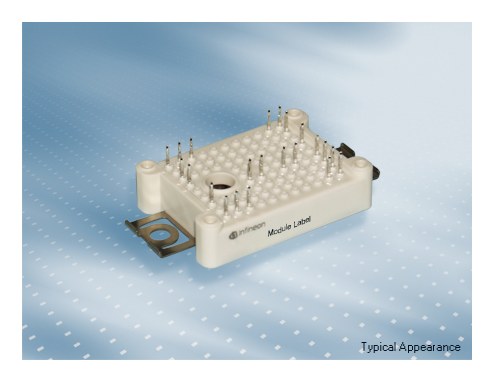

DF100R07W1H5FP_B53 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

DF100R07W1H5FP_B53 Description

DF100R07W1H5FP_B53 is a 650 V / 50 A chopper / booster IGBT module from Infineon Technologies. Typical applications: solar applications.

USComponent supplies DF100R07W1H5FP_B53 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • CoolSiC Schottky diode gen 5
  • Increased blocking voltage capability up to 650V
  • Low inductive design
  • Low switching losses
  • Al2O3 substrate with low thermal resistance
  • Integrated NTC temperature sensor
  • PressFIT contact technology
  • Pre-applied Thermal Interface Material

Target Applications

Infineon DF100R07W1H5FP_B53 is used for Solar applications.

Key Specifications

DF100R07W1H5FP_B53 is a 650 V / 50 A chopper / booster IGBT module from Infineon Technologies (EasyPACK package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationChopper / booster
Collector-emitter voltage (VCES)650 V
Nominal collector current (IC nom)50 A
PackageEasyPACK
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for DF100R07W1H5FP_B53 (reply within 24 hours)
